BottomSheet

A SwiftUI BottomSheet component that presents content from the bottom of the screen.

Expo UI BottomSheet matches the official SwiftUI sheet API and presents content from the bottom of the screen.

Usage

Basic bottom sheet

Pass the control that opens the sheet as the anchor prop. The children are the sheet's content.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Text,
  VStack,
} from '@expo/ui/swift-ui';

export default function BasicBottomSheetExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Text>Hello, world!</Text>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

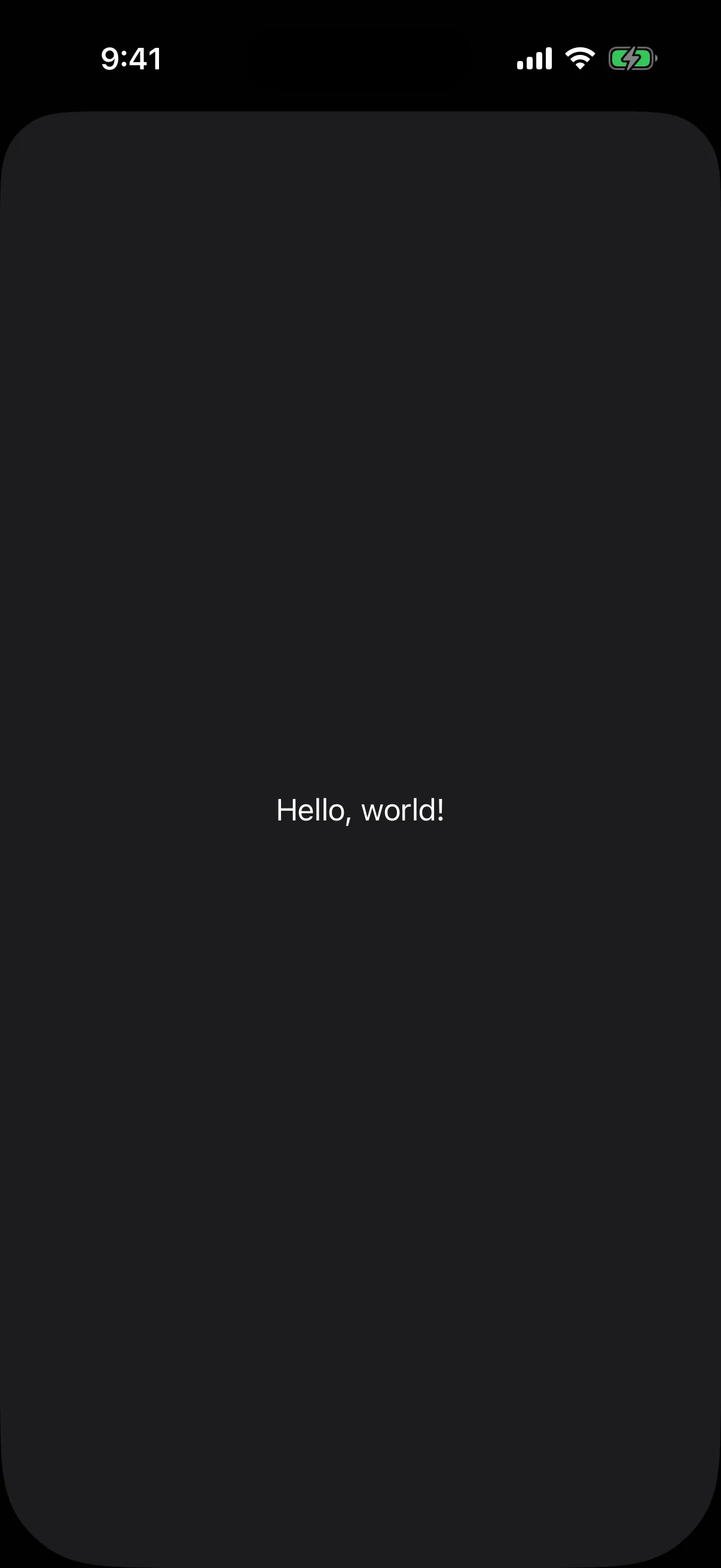

A bottom sheet filling the screen with the text Hello, world! centered

React Native view as an anchor

The anchor can be a React Native view. Wrap it in RNHostView.

import { useState } from 'react';
import { Pressable, Text as RNText } from 'react-native';
import {
  Host,
  BottomSheet,
  Button,
  RNHostView,
  Text,
  VStack,
} from '@expo/ui/swift-ui';

export default function BottomSheetRNAnchorExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          fitToContents
          anchor={
            <RNHostView matchContents>
              <Pressable
                onPress={() => setIsPresented(true)}
                style={{
                  backgroundColor: '#007AFF',
                  padding: 12,
                  borderRadius: 8,
                  alignSelf: 'flex-start',
                }}>
                <RNText
                  style={{ color: 'white', fontWeight: '600' }}>
                  Open sheet
                </RNText>
              </Pressable>
            </RNHostView>
          }>
          <VStack>
            <Text>Opened from a React Native anchor.</Text>
            <Button
              label="Close"
              onPress={() => setIsPresented(false)}
            />
          </VStack>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

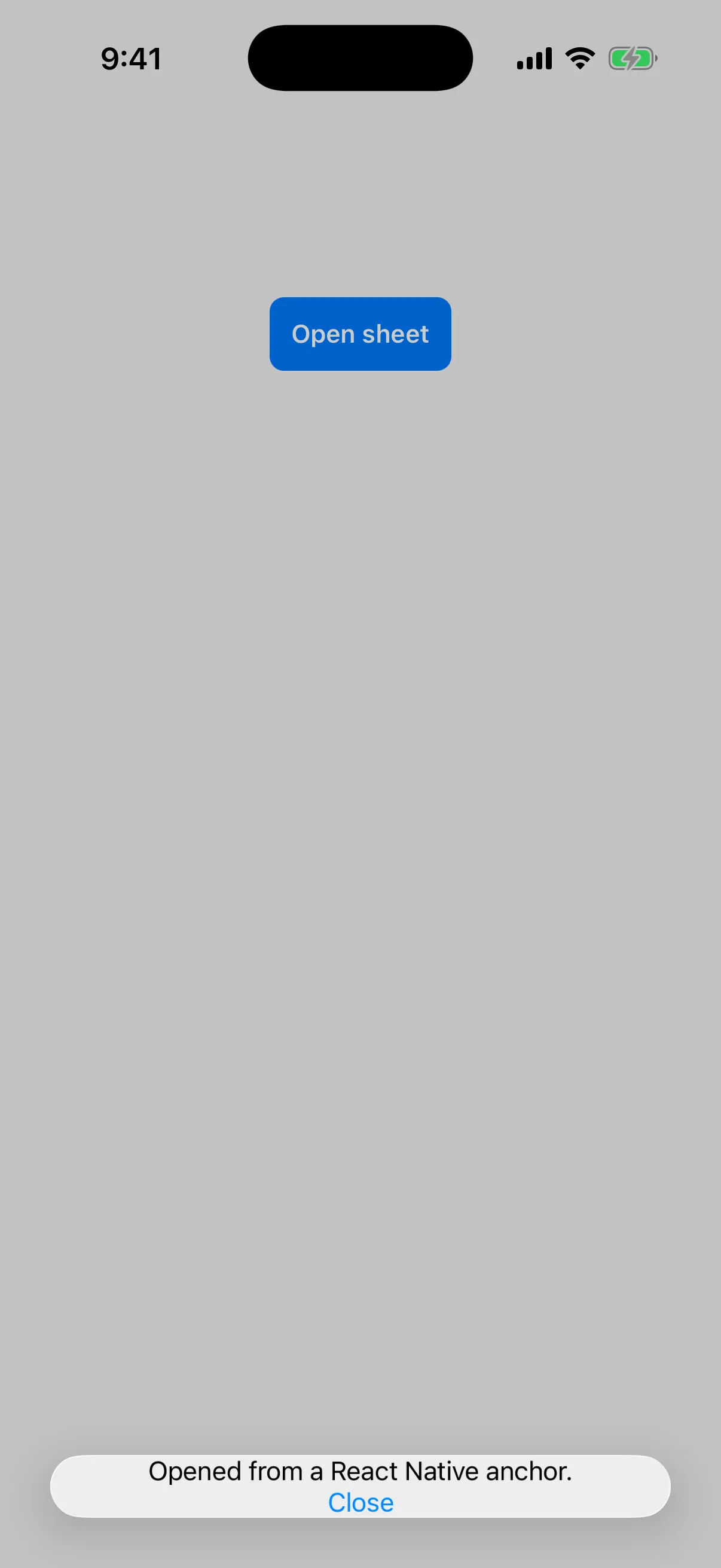

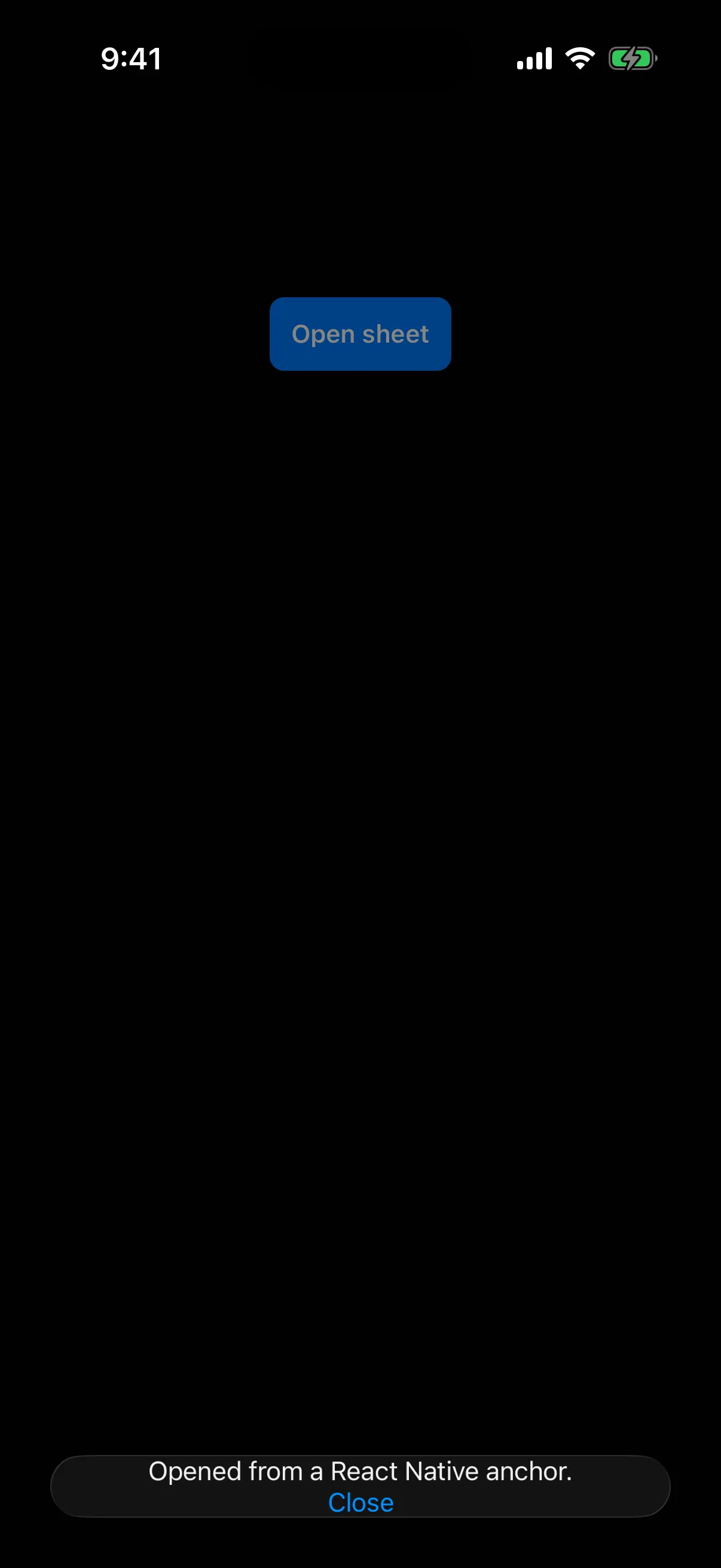

A blue React Native button above a bottom sheet sized to its content

Bottom sheet that fits content

Use the fitToContents prop to automatically size the sheet to fit its content.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Text,
  VStack,
} from '@expo/ui/swift-ui';

export default function BottomSheetFitsContentExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          fitToContents
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <VStack>
            <Text>
              This sheet automatically sizes to fit its content.
            </Text>
            <Button
              label="Close"
              onPress={() => setIsPresented(false)}
            />
          </VStack>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

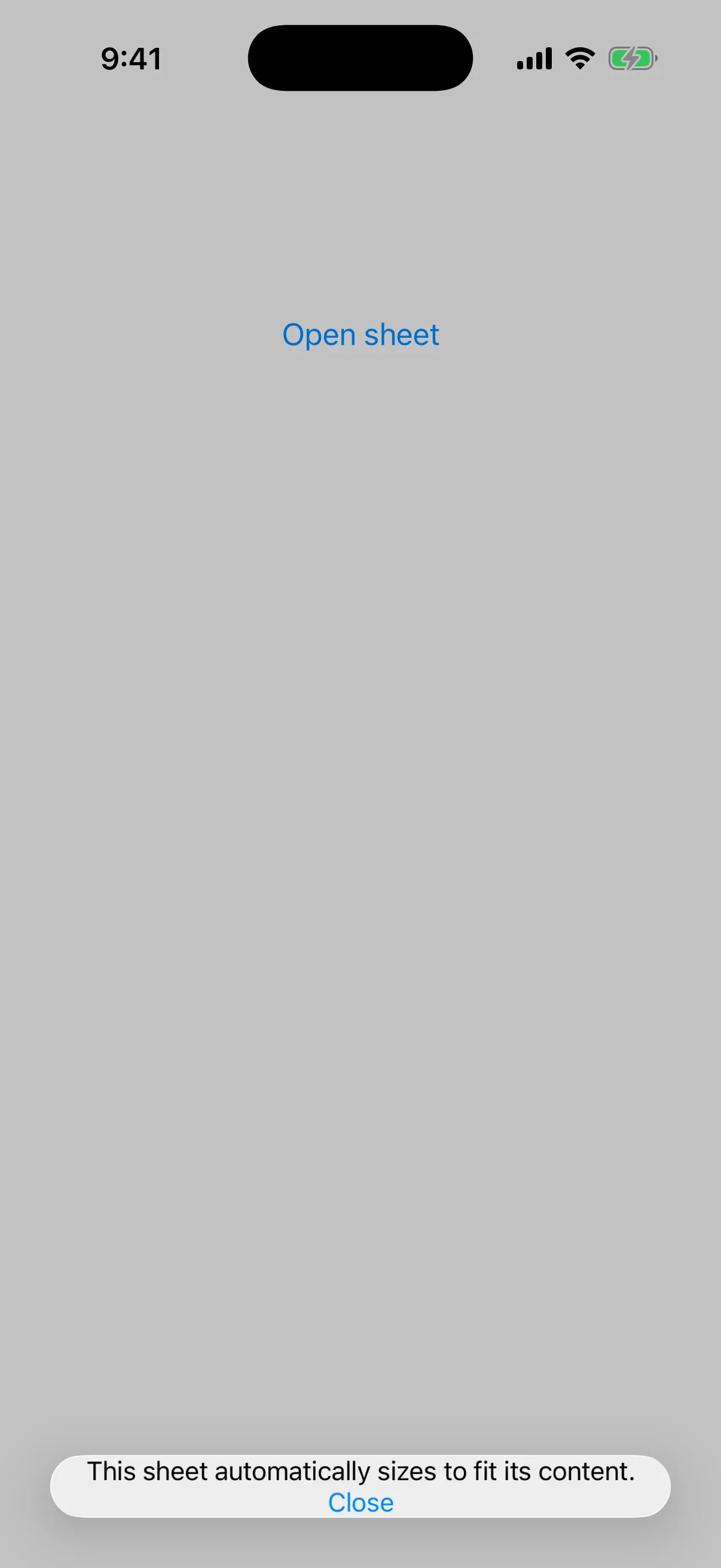

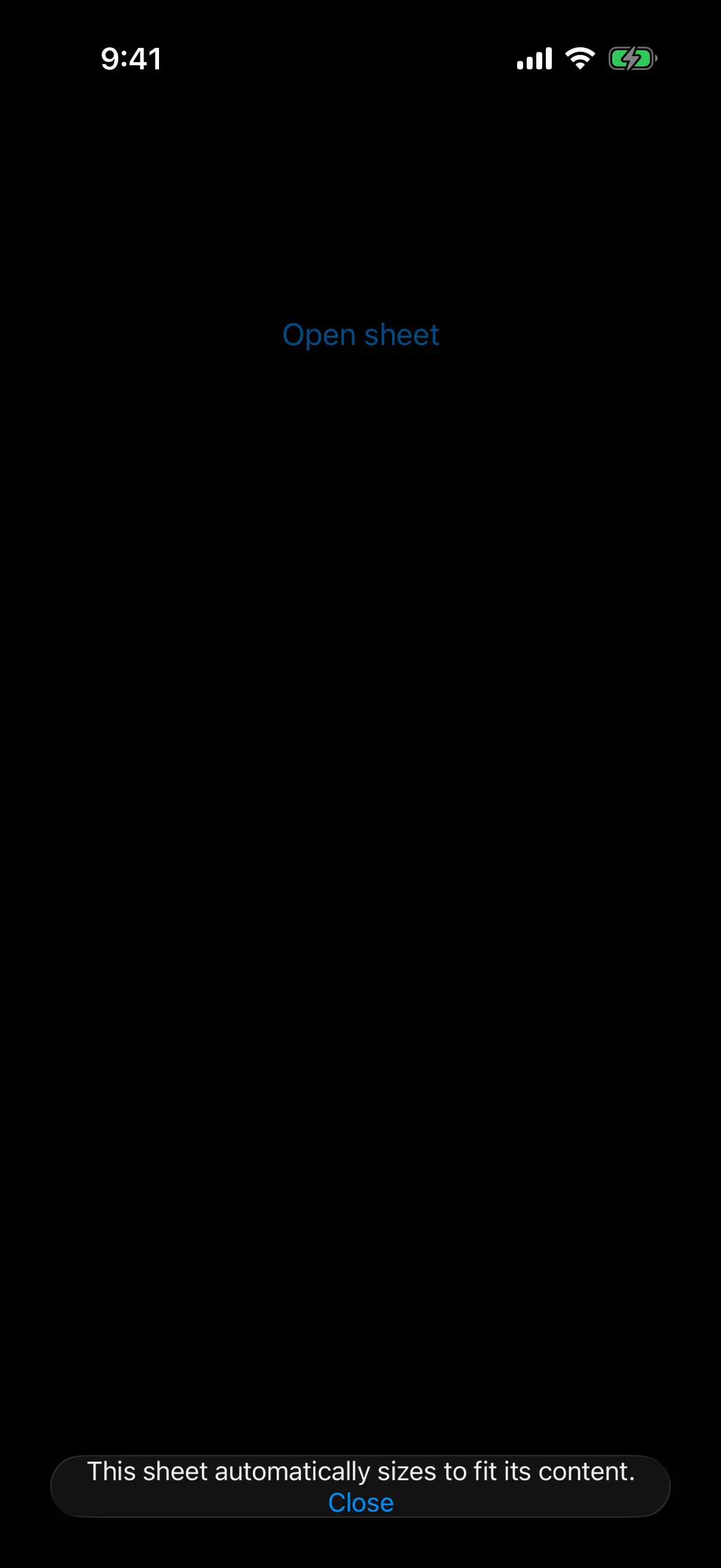

A bottom sheet sized to one line of text and a Close button

By default, a sheet uses the system's translucent material background (Liquid Glass on iOS 26). Use the presentationBackground modifier on Group to paint the sheet with a solid color instead, which also opts the sheet out of that translucent material.

Prefer presentationBackground over a background modifier on the sheet's content. A background sits behind the content's own background, so a Form or List covers it, and the color shows inconsistently as the sheet moves between detents. presentationBackground colors the sheet surface itself, so it stays consistent at every detent. When the content is a Form or List, also add scrollContentBackground('hidden') so the sheet color shows through the grouped background.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  Text,
  VStack,
} from '@expo/ui/swift-ui';
import {
  presentationBackground,
  presentationDetents,
  padding,
  foregroundStyle,
} from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetBackgroundColorExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents(['medium', 'large']),
              presentationBackground('#ffffff'),
            ]}>
            <VStack modifiers={[padding({ all: 20 })]}>
              <Text modifiers={[foregroundStyle('#000000')]}>
                Solid white sheet background.
              </Text>
              <Button
                label="Close"
                onPress={() => setIsPresented(false)}
              />
            </VStack>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

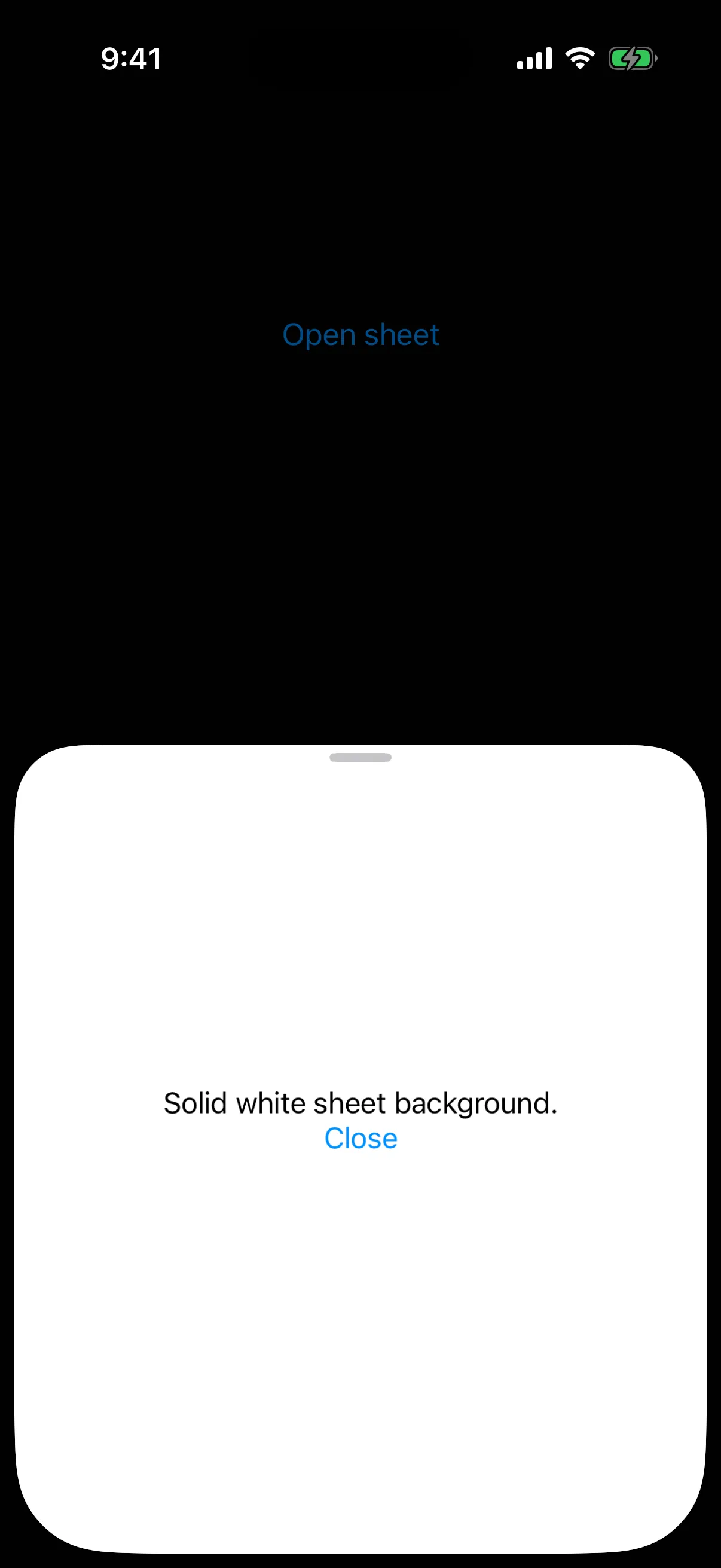

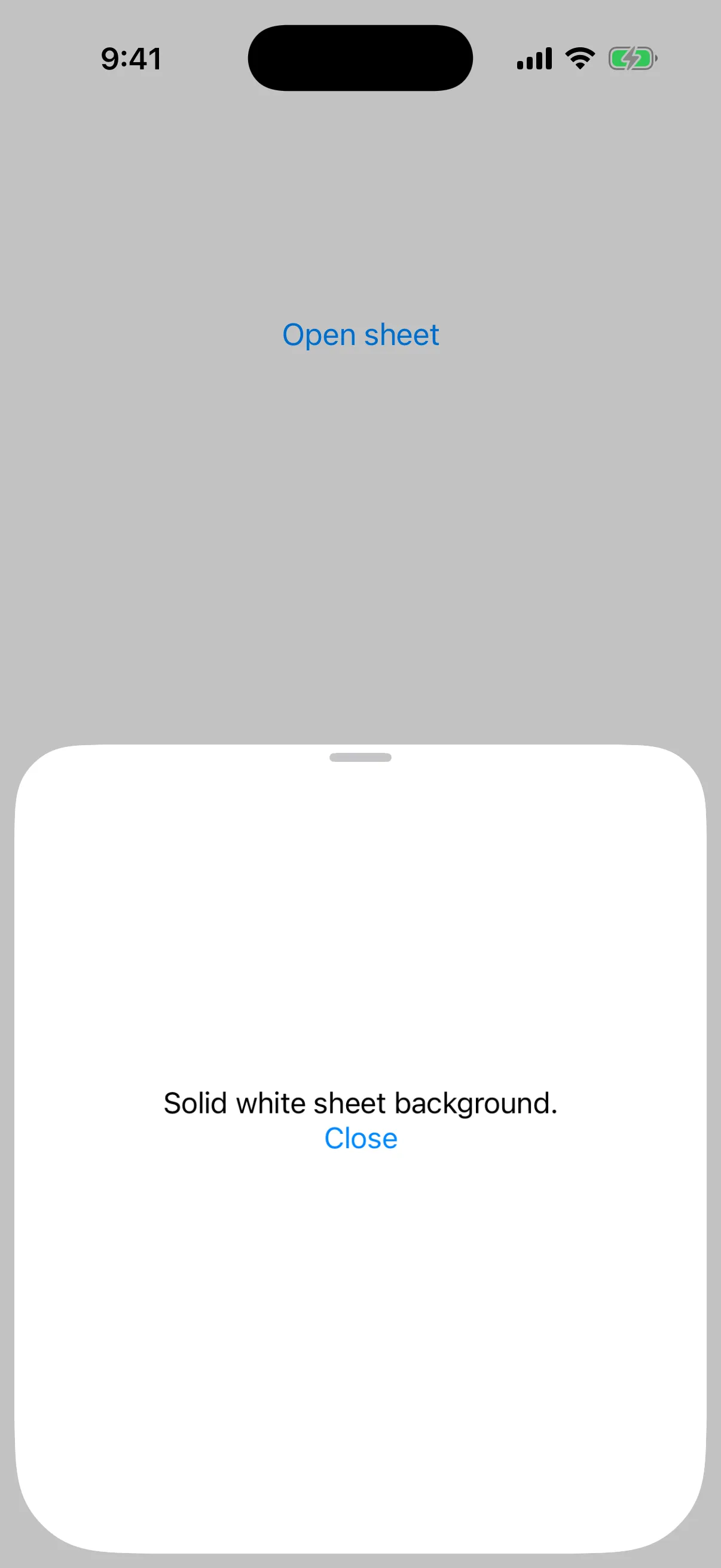

A bottom sheet with a solid white background at the medium detent

Bottom sheet with presentation detents

Use the presentationDetents modifier on Group to control the available heights. You can use:

'medium': System medium height (approximately half screen)
'large': System large height (full screen)
{ fraction: number }: Fraction of screen height (0-1)
{ height: number }: Fixed height in points

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  Text,
  VStack,
} from '@expo/ui/swift-ui';
import { presentationDetents } from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetWithDetentsExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents([
                'medium',
                'large',
                { fraction: 0.3 },
                { height: 200 },
              ]),
            ]}>
            <Text>This sheet can snap to multiple heights.</Text>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

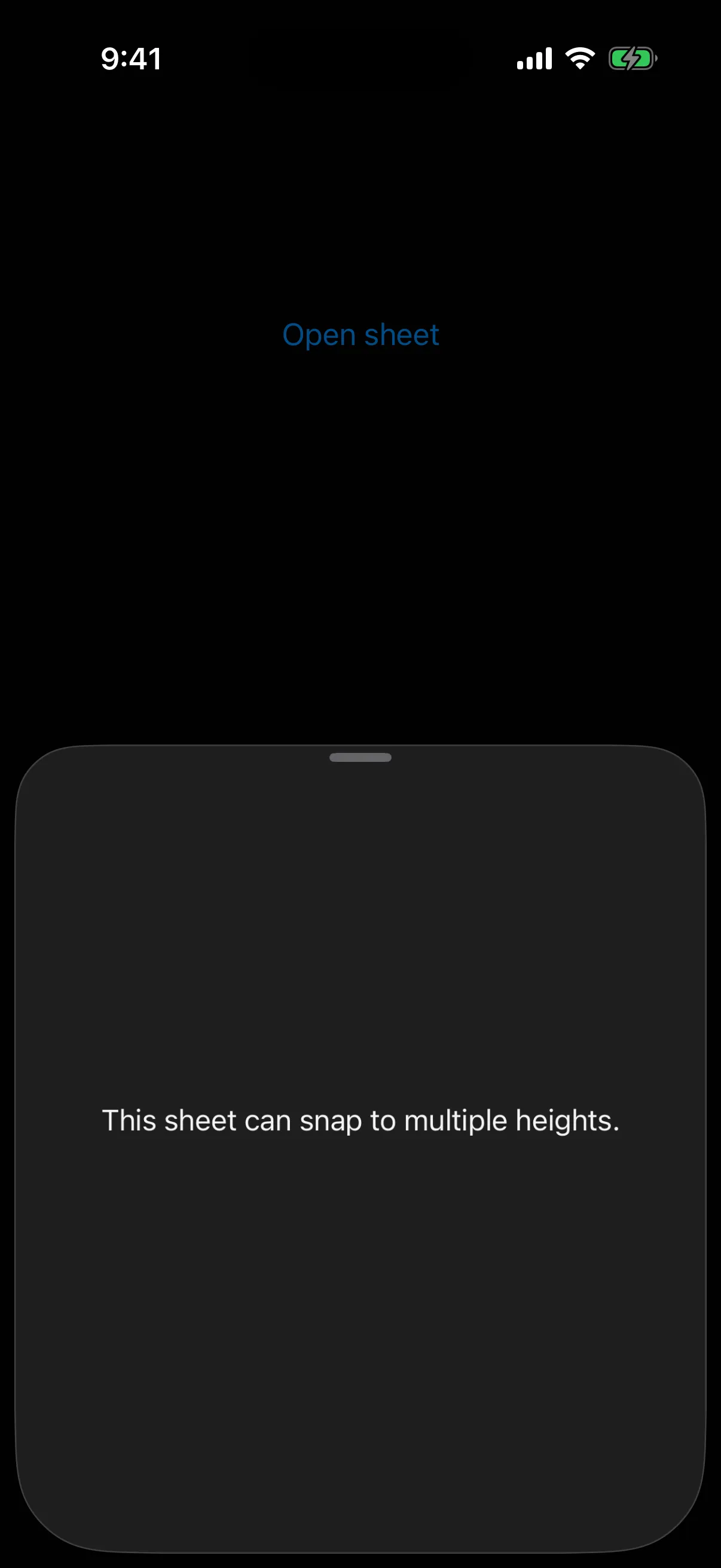

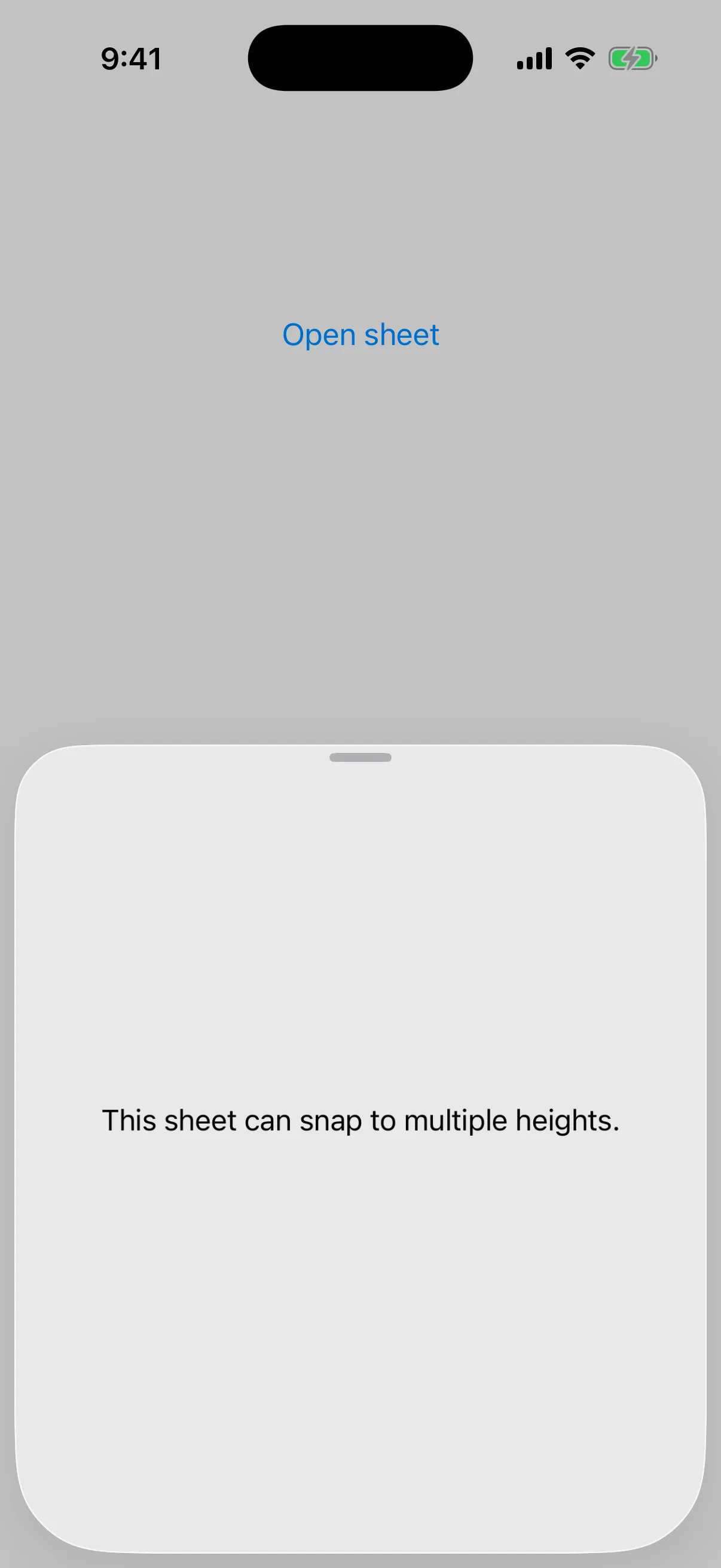

A bottom sheet at the medium detent showing text about snapping to multiple heights

Bottom sheet with detent selection tracking

Pass selection and onSelectionChange options to presentationDetents to programmatically control which detent the sheet snaps to.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  List,
  Section,
  Text,
  VStack,
  Group,
} from '@expo/ui/swift-ui';
import {
  presentationDetents,
  presentationDragIndicator,
  foregroundStyle,
} from '@expo/ui/swift-ui/modifiers';
import type { PresentationDetent } from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetWithDetentSelectionExample() {
  const [isPresented, setIsPresented] = useState(false);
  const detents: PresentationDetent[] = [
    { height: 300 },
    { fraction: 0.3 },
    'medium',
    'large',
  ];
  const [selectedDetent, setSelectedDetent] =
    useState<PresentationDetent>('medium');

  const formatDetent = (detent: PresentationDetent): string => {
    if (typeof detent === 'string') return detent;
    if ('fraction' in detent) return `Fraction ${detent.fraction}`;
    return `Height ${detent.height}`;
  };

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Show sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents(detents, {
                selection: selectedDetent,
                onSelectionChange: setSelectedDetent,
              }),
              presentationDragIndicator('visible'),
            ]}>
            <List>
              <Section title="Change detent">
                <Button
                  label="Height 300"
                  onPress={() => setSelectedDetent({ height: 300 })}
                />
                <Button
                  label="Fraction 0.3"
                  onPress={() =>
                    setSelectedDetent({ fraction: 0.3 })
                  }
                />
                <Button
                  label="Medium"
                  onPress={() => setSelectedDetent('medium')}
                />
                <Button
                  label="Large"
                  onPress={() => setSelectedDetent('large')}
                />
              </Section>
              <Section title="Current">
                <Text
                  modifiers={[foregroundStyle('secondaryLabel')]}>
                  {formatDetent(selectedDetent)}
                </Text>
              </Section>
            </List>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

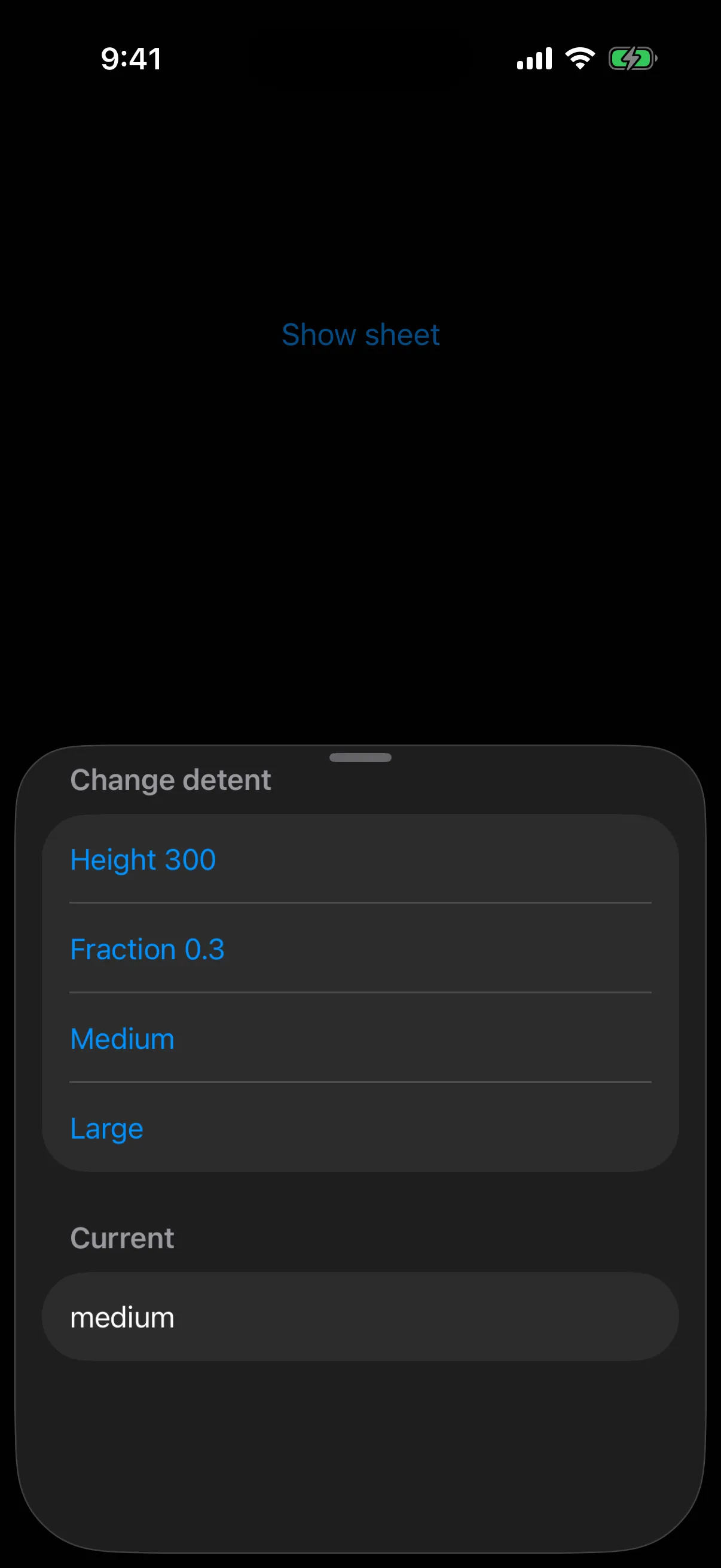

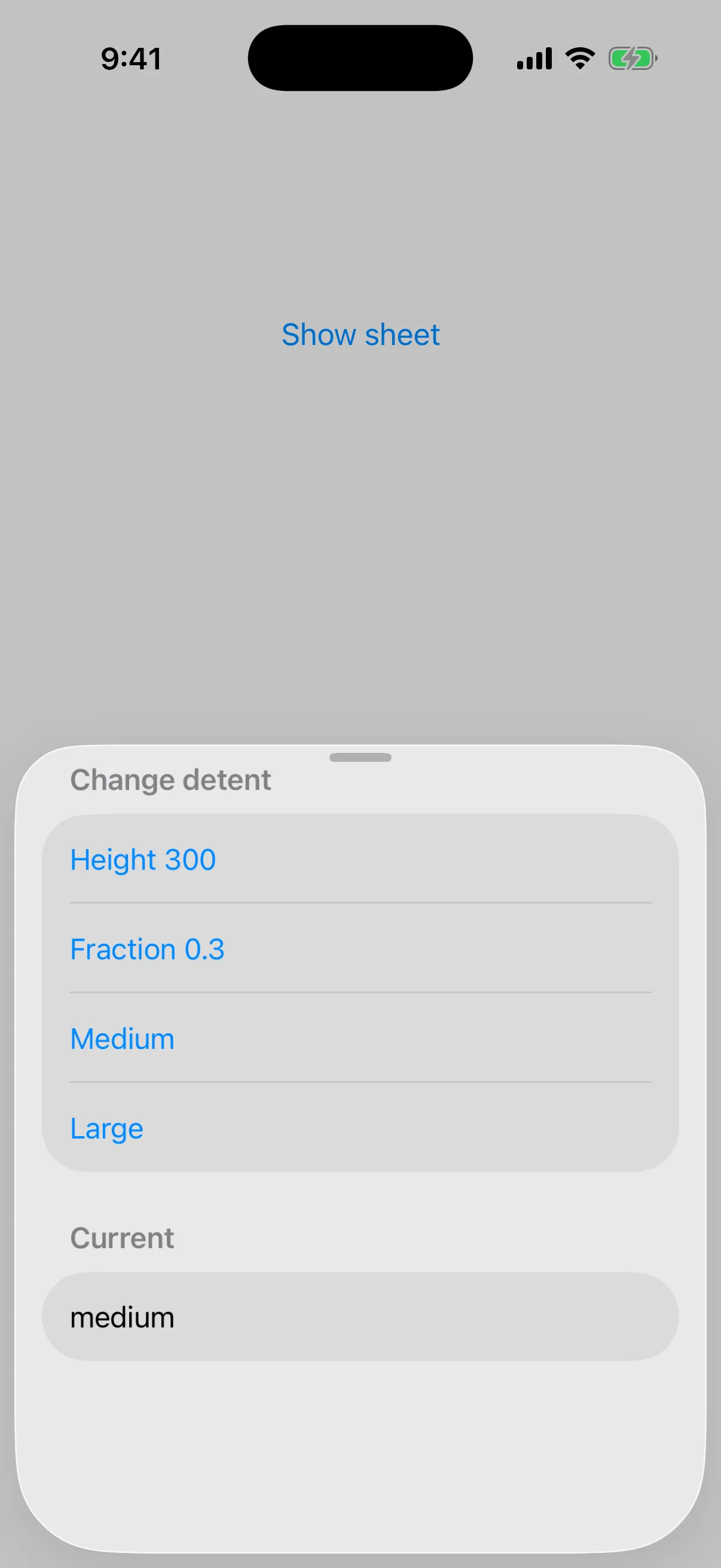

A bottom sheet listing detent options with the current detent shown as medium

Bottom sheet with background interaction

Use the presentationBackgroundInteraction modifier to allow interactions with content behind the sheet.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  Text,
  VStack,
} from '@expo/ui/swift-ui';
import {
  presentationDetents,
  presentationBackgroundInteraction,
} from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetWithBackgroundInteractionExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents(['medium', 'large']),
              presentationBackgroundInteraction({
                type: 'enabledUpThrough',
                detent: 'medium',
              }),
            ]}>
            <Text>
              Interact with content behind when at medium height.
            </Text>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

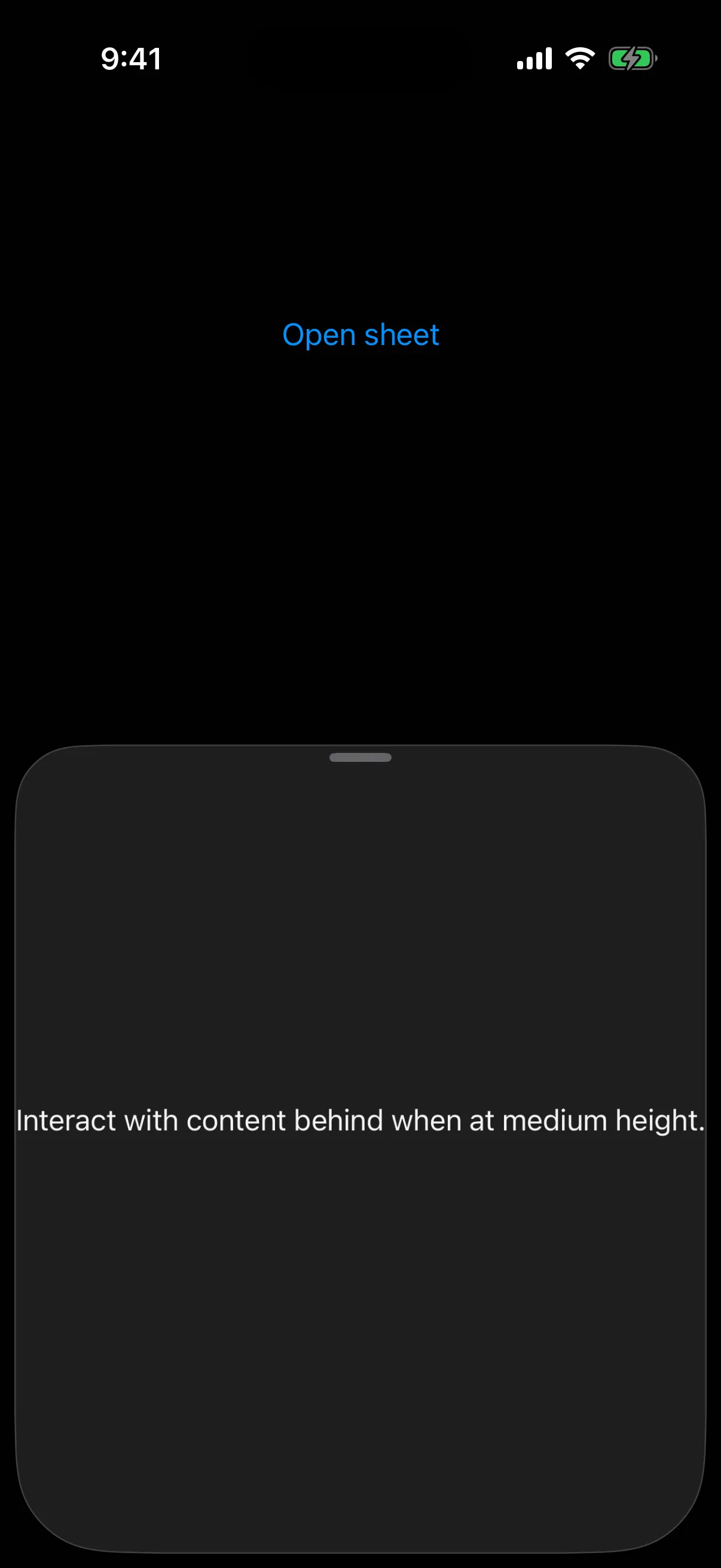

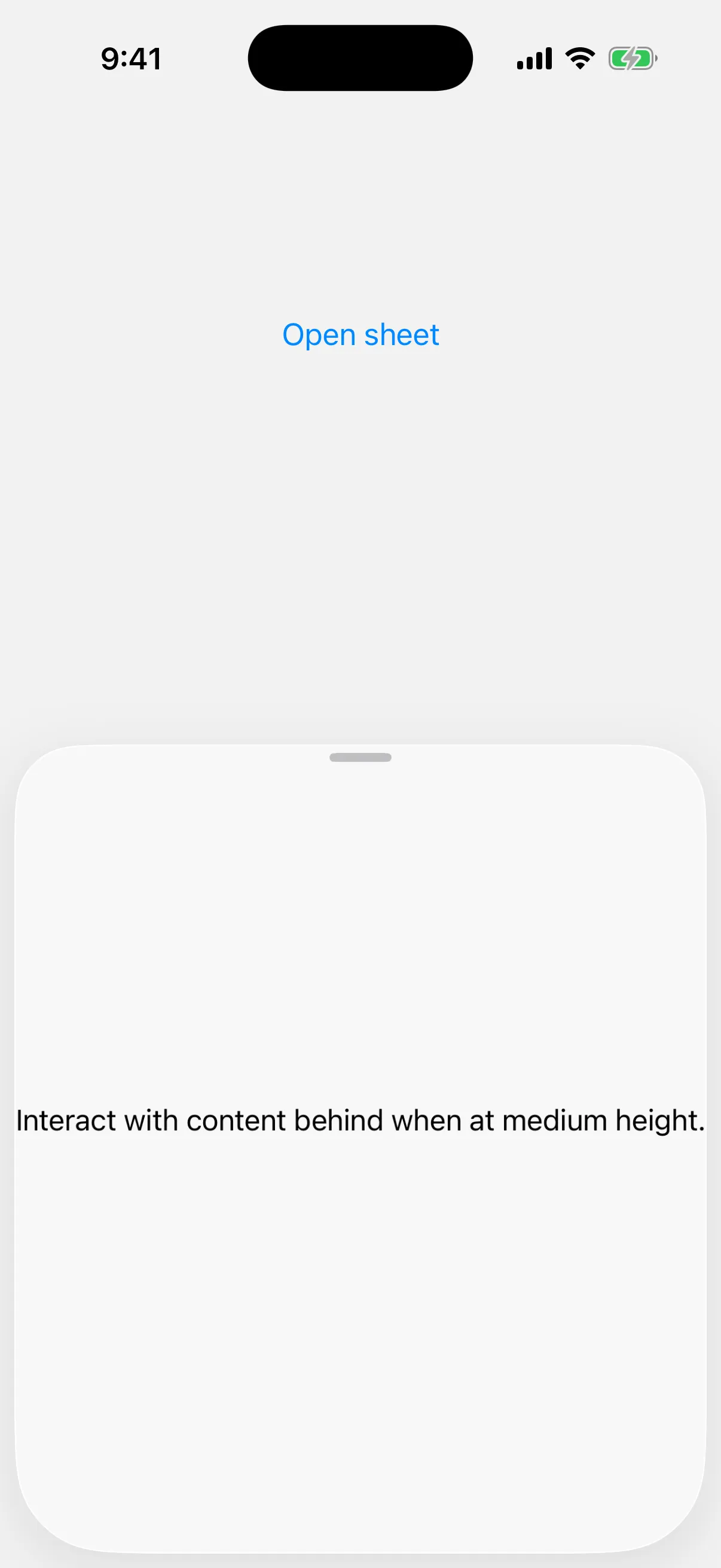

A bottom sheet at the medium detent over an undimmed background

Non-dismissible bottom sheet

Use the interactiveDismissDisabled modifier to prevent users from dismissing the sheet by swiping.

import { useState } from 'react';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  Text,
  VStack,
} from '@expo/ui/swift-ui';
import { interactiveDismissDisabled } from '@expo/ui/swift-ui/modifiers';

export default function NonDismissibleBottomSheetExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group modifiers={[interactiveDismissDisabled()]}>
            <VStack>
              <Text>
                This sheet cannot be dismissed by swiping.
              </Text>
              <Button
                label="Close"
                onPress={() => setIsPresented(false)}
              />
            </VStack>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

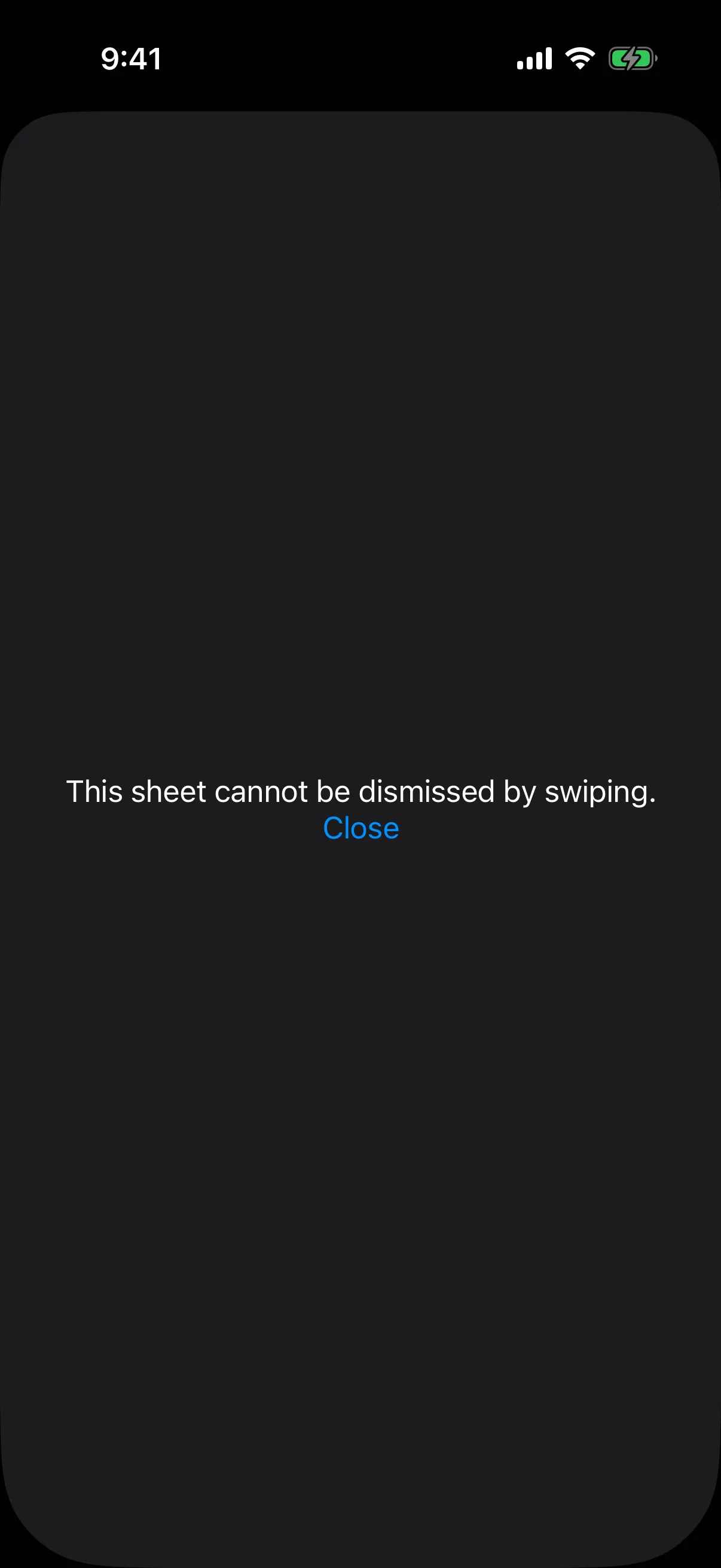

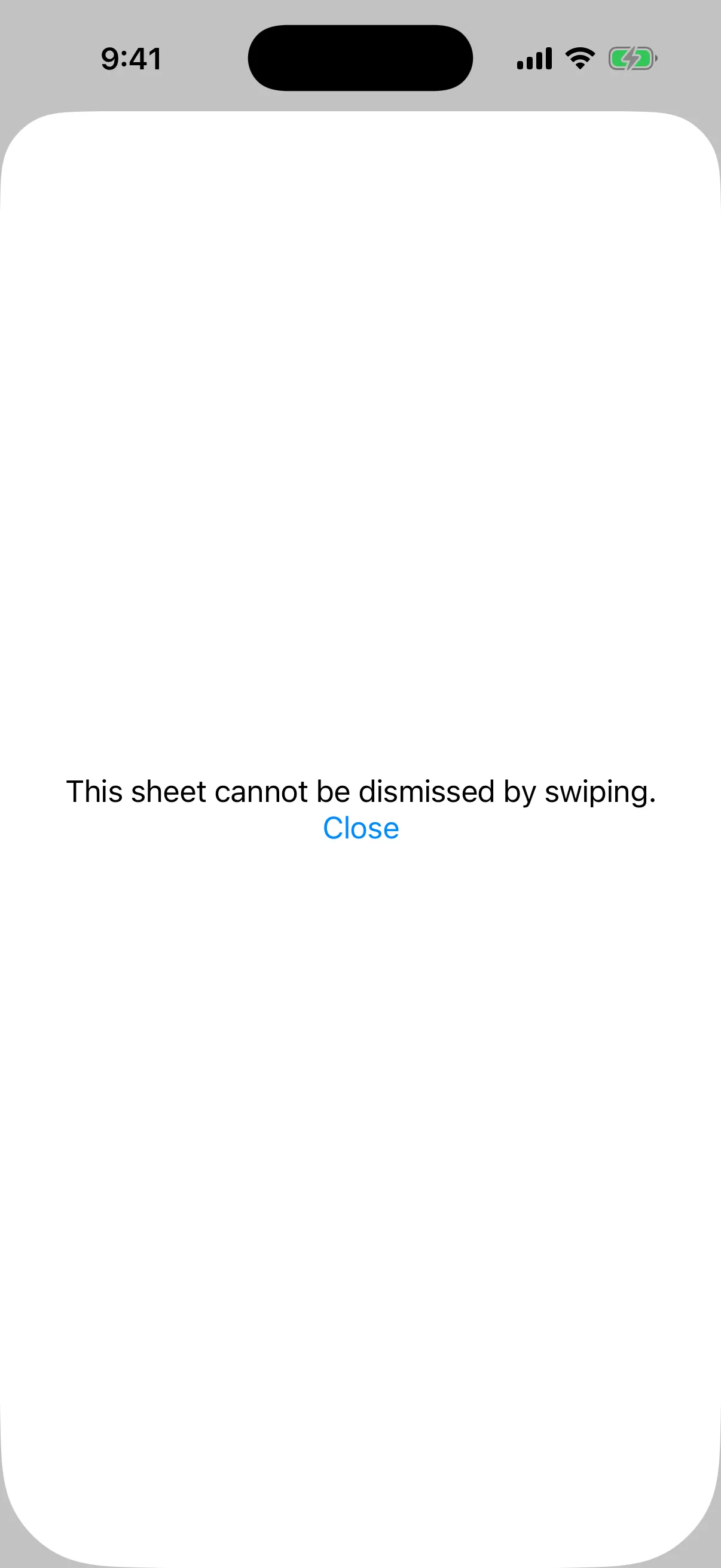

A full-height bottom sheet with text and a Close button

Bottom sheet with React Native content

Use RNHostView to embed React Native components inside the bottom sheet. Set matchContents to automatically size the host view to fit its content.

import { useState } from 'react';
import {
  PlatformColor,
  Pressable,
  Text as RNText,
  View,
} from 'react-native';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  RNHostView,
  VStack,
} from '@expo/ui/swift-ui';
import { presentationDragIndicator } from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetWithRNContentExample() {
  const [isPresented, setIsPresented] = useState(false);
  const [counter, setCounter] = useState(0);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          fitToContents
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group modifiers={[presentationDragIndicator('visible')]}>
            <RNHostView matchContents>
              <View style={{ padding: 24 }}>
                <RNText
                  style={{
                    fontSize: 18,
                    fontWeight: 'bold',
                    marginBottom: 8,
                    color: PlatformColor('label'),
                  }}>
                  React Native Content
                </RNText>
                <RNText style={{ color: '#666', marginBottom: 16 }}>
                  Counter: {counter}
                </RNText>
                <Pressable
                  style={{
                    backgroundColor: '#007AFF',
                    padding: 12,
                    borderRadius: 8,
                    alignItems: 'center',
                    marginBottom: 12,
                  }}
                  onPress={() => setCounter(counter + 1)}>
                  <RNText
                    style={{ color: 'white', fontWeight: '600' }}>
                    Increment
                  </RNText>
                </Pressable>
                <Pressable
                  style={{
                    backgroundColor: '#FF3B30',
                    padding: 12,
                    borderRadius: 8,
                    alignItems: 'center',
                  }}
                  onPress={() => setIsPresented(false)}>
                  <RNText
                    style={{ color: 'white', fontWeight: '600' }}>
                    Close
                  </RNText>
                </Pressable>
              </View>
            </RNHostView>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

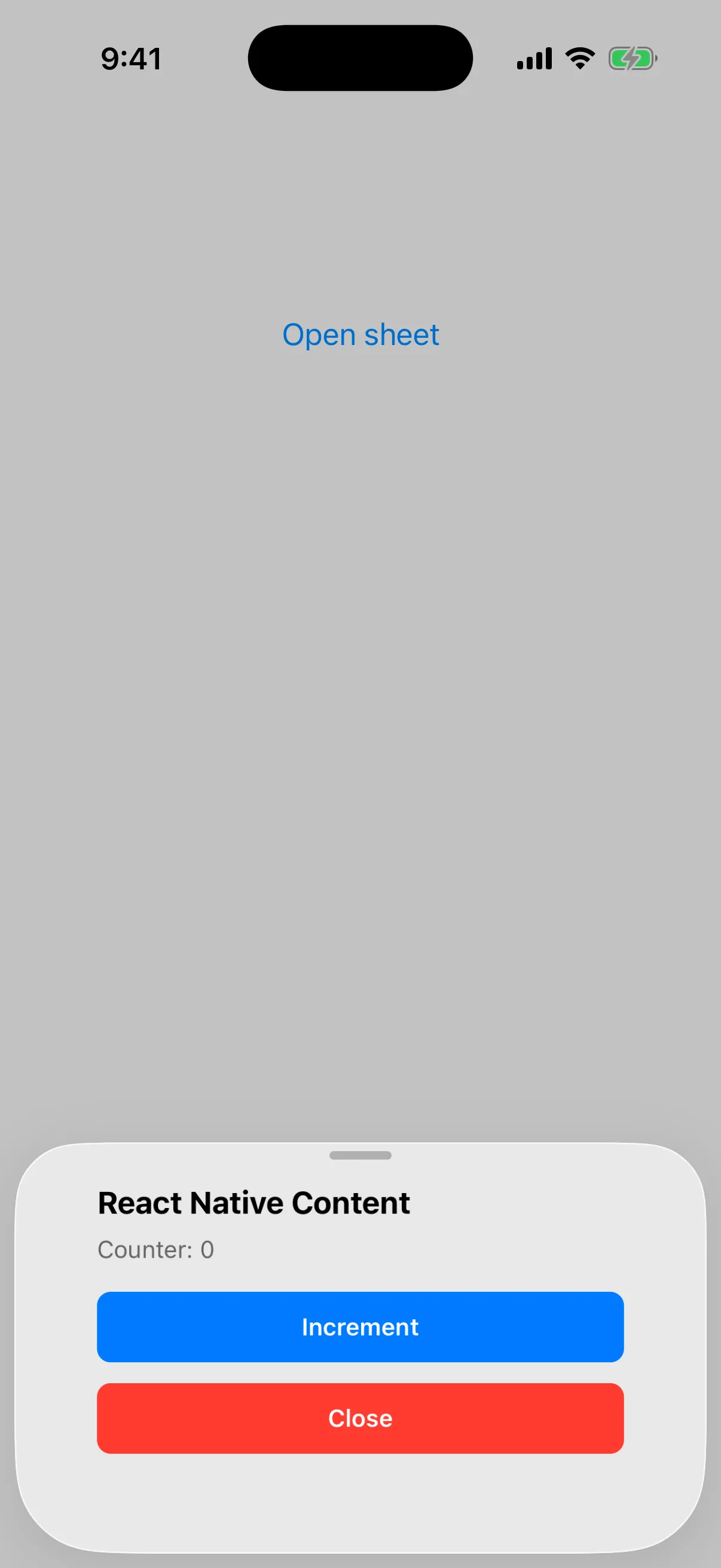

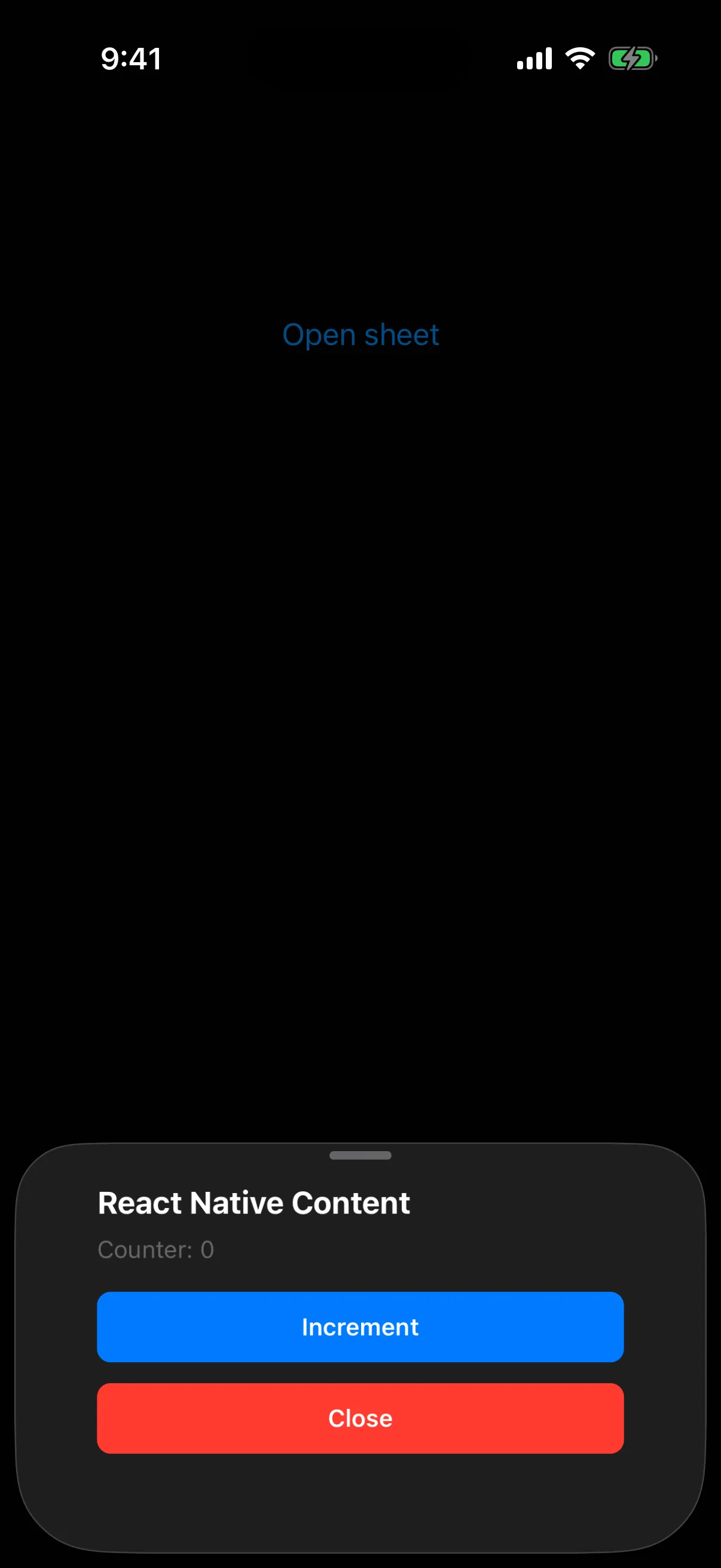

A bottom sheet holding React Native text, a counter, and Increment and Close buttons

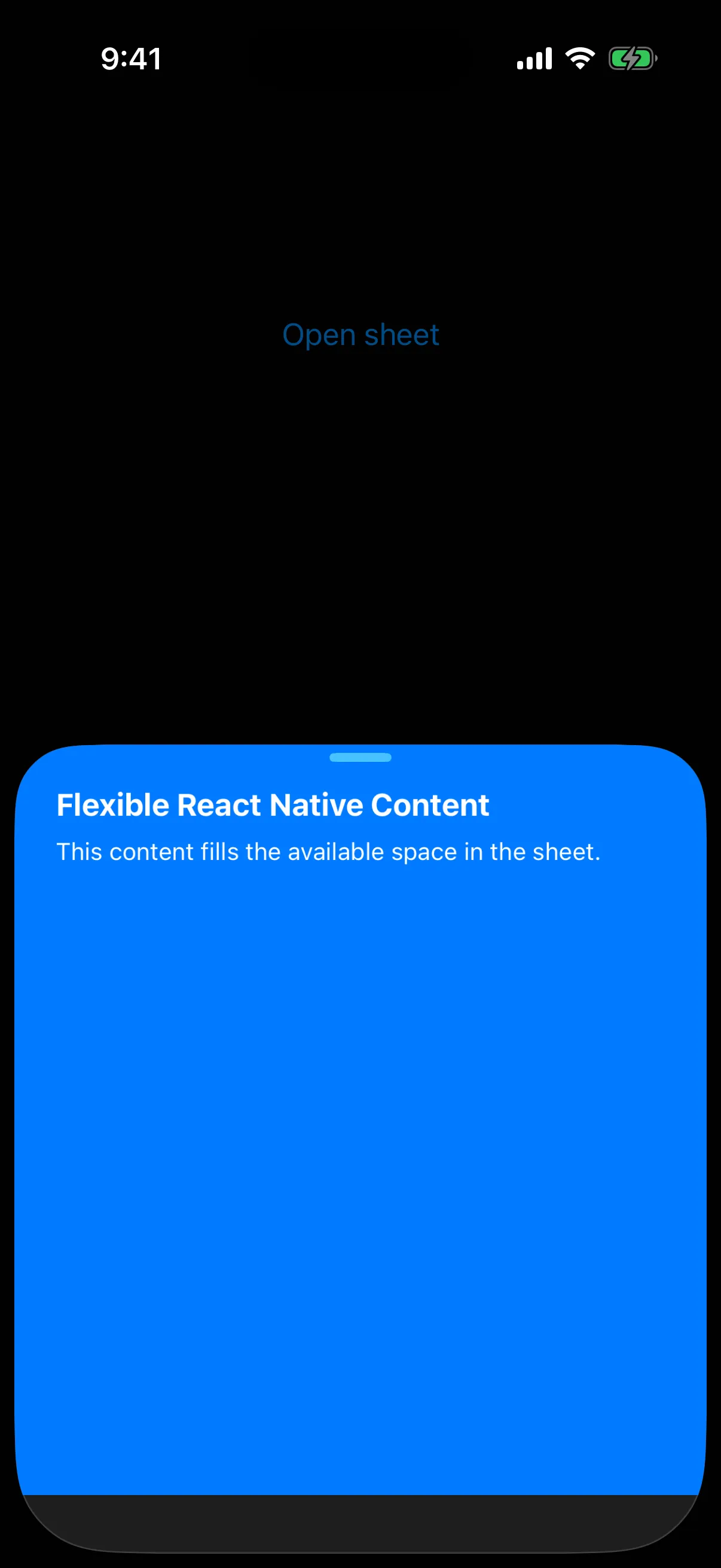

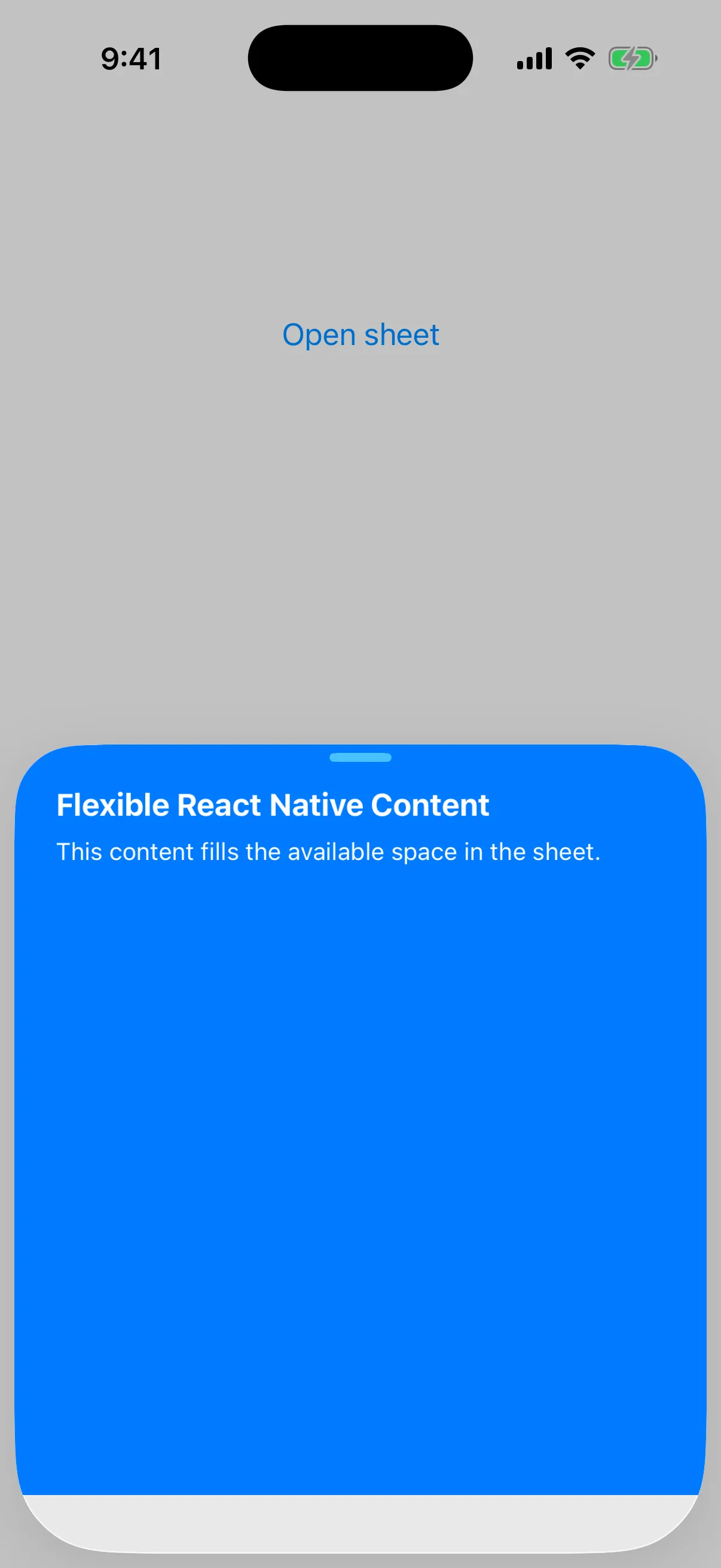

Bottom sheet with flexible React Native content

When using React Native content with flex: 1, omit the matchContents prop on RNHostView and use presentationDetents to control the sheet height.

import { useState } from 'react';
import { Text as RNText, View } from 'react-native';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  RNHostView,
  VStack,
} from '@expo/ui/swift-ui';
import {
  presentationDetents,
  presentationDragIndicator,
} from '@expo/ui/swift-ui/modifiers';

export default function BottomSheetWithFlexRNContentExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents(['medium', 'large']),
              presentationDragIndicator('visible'),
            ]}>
            <RNHostView>
              <View
                style={{
                  flex: 1,
                  backgroundColor: '#007AFF',
                  padding: 24,
                }}>
                <RNText
                  style={{
                    fontSize: 18,
                    fontWeight: 'bold',
                    color: 'white',
                  }}>
                  Flexible React Native Content
                </RNText>
                <RNText style={{ color: 'white', marginTop: 8 }}>
                  This content fills the available space in the
                  sheet.
                </RNText>
              </View>
            </RNHostView>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

A bottom sheet filled by a blue React Native view at the medium detent

Scrollable React Native content

Nest a scrollable React Native list such as FlatList, ScrollView, or a high-performance list like FlashList or Legend List inside the sheet with RNHostView. Size the sheet with presentationDetents and the list scrolls within that height.

import { useState } from 'react';
import {
  FlatList,
  PlatformColor,
  Text as RNText,
  View,
} from 'react-native';
import {
  Host,
  BottomSheet,
  Button,
  Group,
  RNHostView,
  VStack,
} from '@expo/ui/swift-ui';
import {
  presentationDetents,
  presentationDragIndicator,
} from '@expo/ui/swift-ui/modifiers';

const DATA = Array.from({ length: 50 }, (_, i) => `Item ${i + 1}`);

export default function BottomSheetWithScrollableContentExample() {
  const [isPresented, setIsPresented] = useState(false);

  return (
    <Host style={{ flex: 1 }}>
      <VStack>
        <BottomSheet
          isPresented={isPresented}
          onIsPresentedChange={setIsPresented}
          anchor={
            <Button
              label="Open sheet"
              onPress={() => setIsPresented(true)}
            />
          }>
          <Group
            modifiers={[
              presentationDetents(['medium', 'large']),
              presentationDragIndicator('visible'),
            ]}>
            <RNHostView>
              <View style={{ padding: 16 }}>
                <FlatList
                  data={DATA}
                  keyExtractor={item => item}
                  renderItem={({ item }) => (
                    <RNText
                      style={{
                        paddingVertical: 16,
                        color: PlatformColor('label'),
                      }}>
                      {item}
                    </RNText>
                  )}
                />
              </View>
            </RNHostView>
          </Group>
        </BottomSheet>
      </VStack>
    </Host>
  );
}

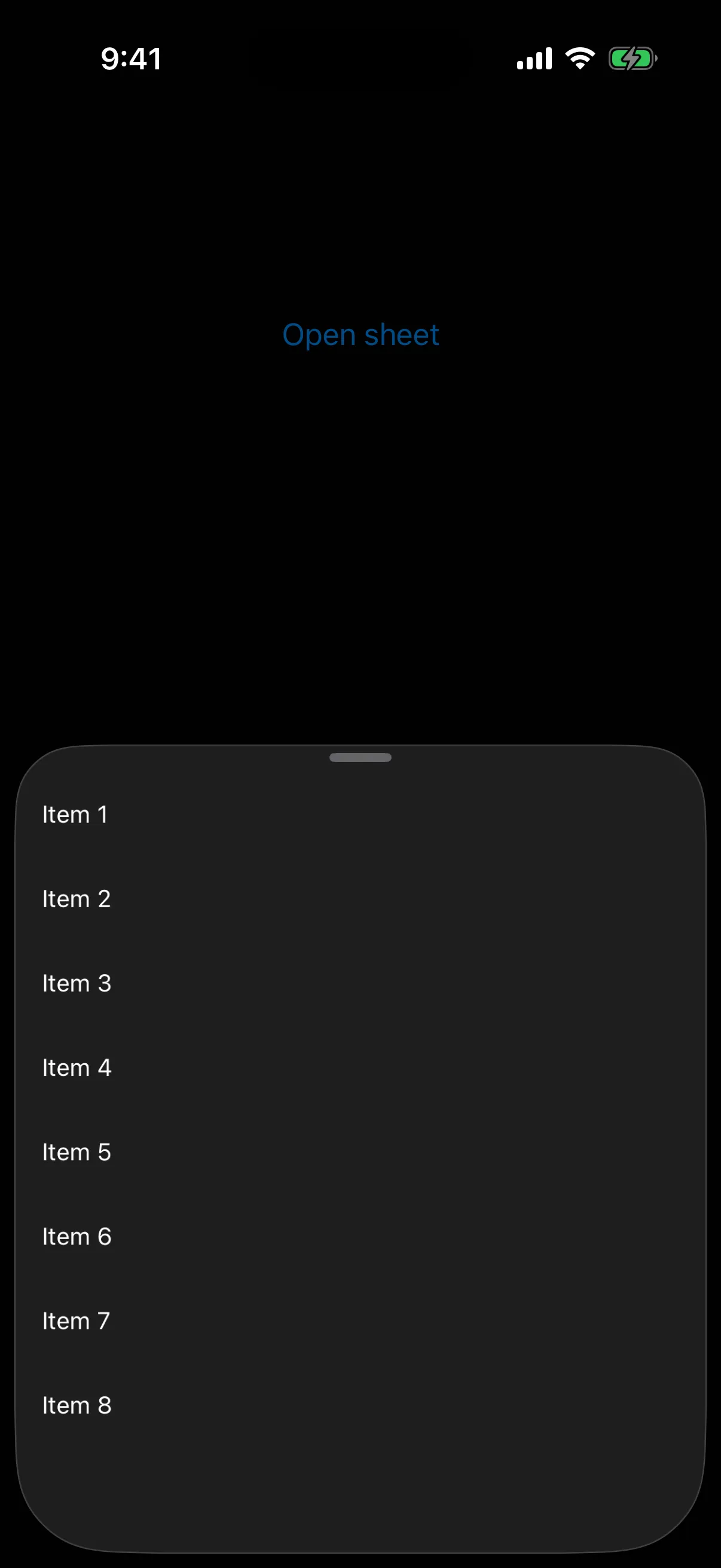

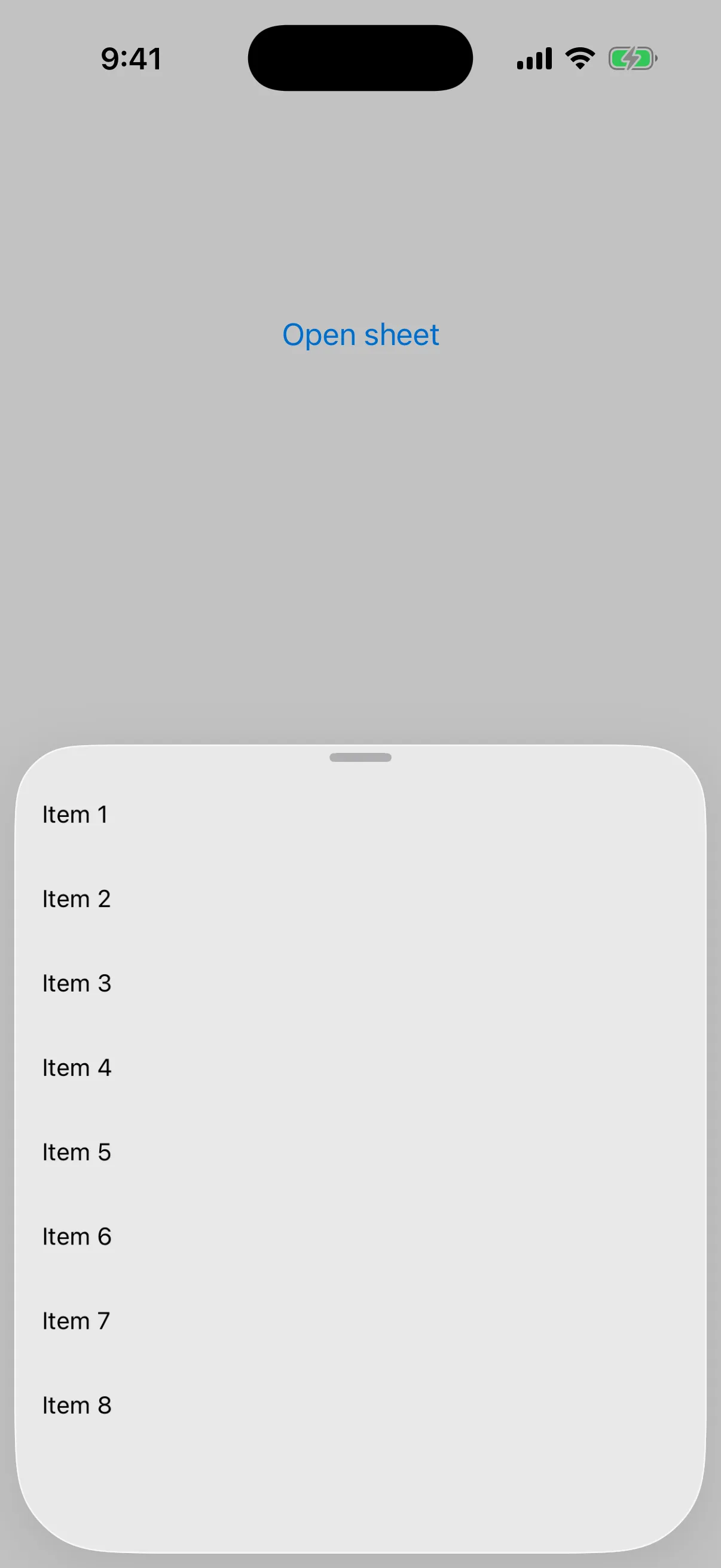

A bottom sheet at the medium detent listing Item 1 through Item 8

API

import { BottomSheet } from '@expo/ui/swift-ui';

Component

`BottomSheet`

Type: React.Element<BottomSheetProps>

BottomSheet presents content from the bottom of the screen.

BottomSheetProps

`anchor`

Optional • Type: ReactNode

A view the sheet is anchored to, for example the Button that opens it. Rendered in place and kept mounted, so presenting the sheet doesn't shift surrounding layout. Optional.

`children`

Type: ReactNode

The sheet's content, mounted while presented and unmounted after dismiss. Wrap it in Group to apply presentation modifiers.

`fitToContents`

Optional • Type: boolean • Default: false

When true, the sheet will automatically size itself to fit its content. This sets the presentation detent to match the height of the children.

`isPresented`

Type: boolean

Whether the BottomSheet is presented.

`onDismiss`

Optional • Type: () => void

Callback function that is called after the BottomSheet has been fully dismissed.

`onIsPresentedChange`

Type: (isPresented: boolean) => void

Callback function that is called when the BottomSheet presented state changes.

Inherited props

CommonViewModifierProps

Modifiers

Use these modifiers in the modifiers prop of the SwiftUI and Universal version. The Drop-in version does not accept modifiers.

Expo UI lets you put any of the 89 modifiers for any view on BottomSheet, but not all of them do something here.

74 change what you see on BottomSheet.
2 work, but not in the way that you may expect.
2 have no visible effect on BottomSheet.
13 work only in one place, such as a widget or a Grid.

Where the modifiers go

In the SwiftUI BottomSheet, modifiers apply to the anchor view, not to the sheet. To change the sheet (for example with presentationDetents), put the modifiers on a Group in the sheet content. With no anchor, the modifiers go on an empty view that you cannot see. The Universal BottomSheet puts its modifiers on the sheet content.

Best modifiers for BottomSheet

These modifiers are made for BottomSheet, or they are the ones that you use most with it.

interactiveDismissDisabled
presentationBackground iOS 16.4+
presentationBackgroundInteraction iOS 16.4+
presentationDetents iOS 16+
presentationDragIndicator iOS 16+
presentationSizing iOS 18+
background
frame
padding

Also works on BottomSheet

BottomSheet takes these modifiers too, and each one works in the usual way.

Needs care on BottomSheet

These modifiers work on BottomSheet, but not in the way that you may expect.

Modifier	What to know
`onAppear`	Runs for the anchor, not for the sheet. To know when the sheet opens, put it on a view in the sheet content.
`onDisappear`	Runs for the anchor, not for the sheet. To know when the sheet opens, put it on a view in the sheet content.

No visible effect on BottomSheet

BottomSheet accepts these modifiers, but you see no change. They do not give an error.

Modifier	Why nothing happens
`layoutPriority`	It has an effect only when the view shares an axis with other views in a stack.
`zIndex`	It changes the order of views that cover each other in the same parent, and BottomSheet does not stack its children.

Only in some places

These modifiers work only in a widget, in a Grid, in a Namespace or in a parent that asks for them.

Modifier	Where it works
`activityBackgroundTint`	Works only in a Live Activity. It has no effect in the app.
`alignmentGuide`	Has an effect only when the parent, such as a `VStack` or `ZStack`, aligns its children by the same guide.
`containerBackground`	Works only in a widget, or in a navigation container when you use a `navigation` placement.
`glassEffectId`	Works only on a view that also has `glassEffect`, in a `GlassEffectContainer` and a `Namespace`.
`gridCellAnchor` iOS 16+	Works only on a cell of a `Grid`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridCellColumns`	Works only on a view in a `Grid.Row`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridCellUnsizedAxes`	Works only on a view in a `Grid`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridColumnAlignment` iOS 16+	Works only on a view in a `Grid.Row`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`invalidatableContent` iOS 17+	Has an effect only when a parent view uses `redacted` with the `invalidated` reason.
`matchedGeometryEffect`	Works only in a `Namespace`. Give two views the same `id` and change between them with an animation.
`privacySensitive`	Has an effect only when a parent view uses `redacted` with the `privacy` reason.
`unredacted`	Has an effect only in a parent view that uses `redacted`.
`widgetURL`	Works only in a widget. It has no effect in the app.

Sources

The original Expo docs for this page:

BottomSheet (SwiftUI) (source-of-truth/versions/v57.0.0/sdk/ui/swift-ui/bottomsheet.md)
BottomSheet (Universal) (source-of-truth/versions/v57.0.0/sdk/ui/universal/bottomsheet.md)
BottomSheet (Drop-in) (source-of-truth/versions/v57.0.0/sdk/ui/drop-in-replacements/bottomsheet.md)
