A SwiftUI Image component for displaying SF Symbols. Also called Icon (Universal).

Expo UI Image displays SF Symbols using the SwiftUI Image API. SF Symbols are a library of configurable symbols provided by Apple.

Usage

Basic SF Symbol

import { Host, Image } from '@expo/ui/swift-ui';

export default function BasicImageExample() {
  return (
    <Host style={{ flex: 1 }}>
      <Image systemName="star.fill" />
    </Host>
  );
}

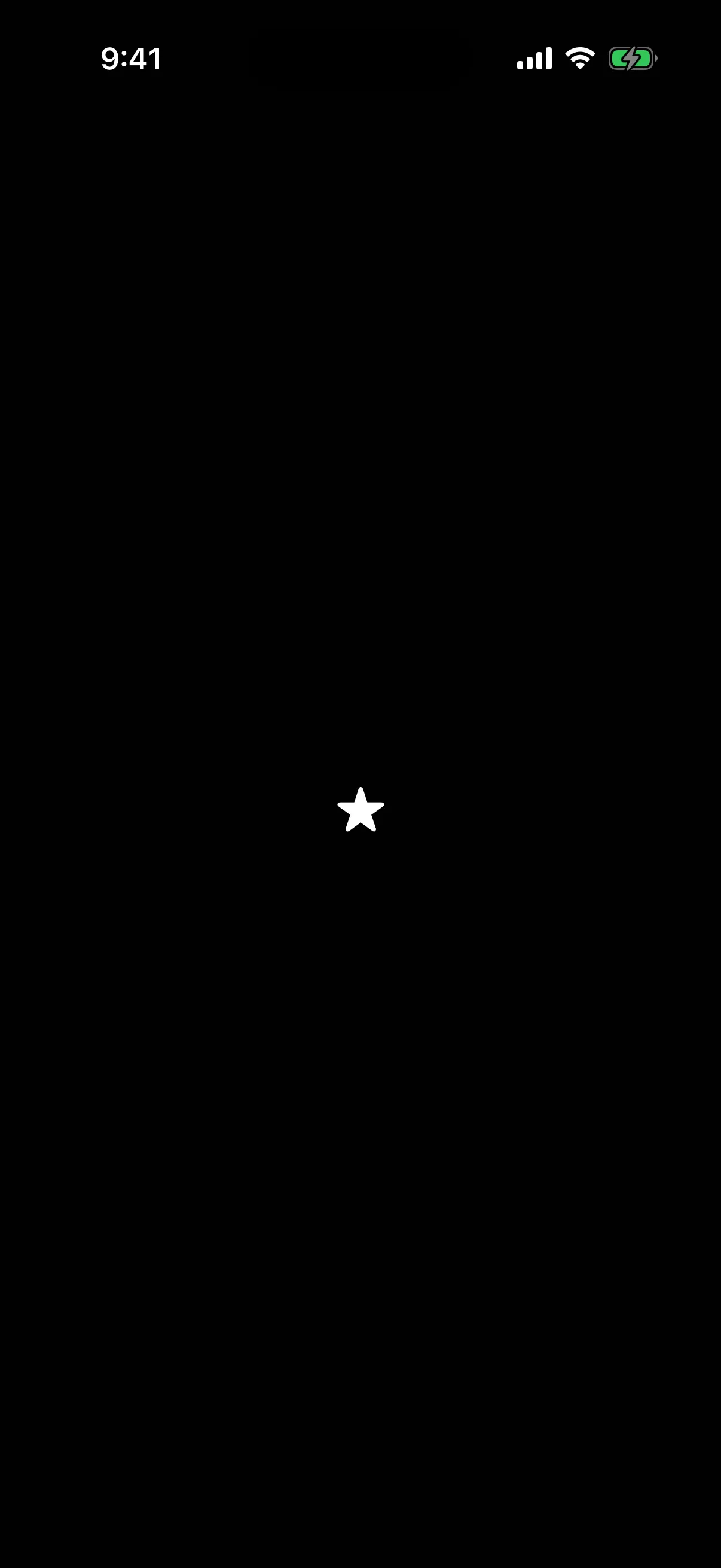

A star SF Symbol rendered at its default size

Custom SF Symbol

Use the assetName prop to display a custom SF Symbol imported into the app asset catalog as a symbol set.

import { Host, Image } from '@expo/ui/swift-ui';

export default function CustomImageExample() {
  return (
    <Host matchContents>
      <Image assetName="acme.mark" />
    </Host>
  );
}

With size and color

import { Host, HStack, Image } from '@expo/ui/swift-ui';

export default function ImageSizeColorExample() {
  return (
    <Host style={{ flex: 1 }}>
      <HStack spacing={16}>
        <Image systemName="heart.fill" size={24} color="red" />
        <Image systemName="star.fill" size={32} color="orange" />
        <Image systemName="bell.fill" size={40} color="blue" />
      </HStack>
    </Host>
  );
}

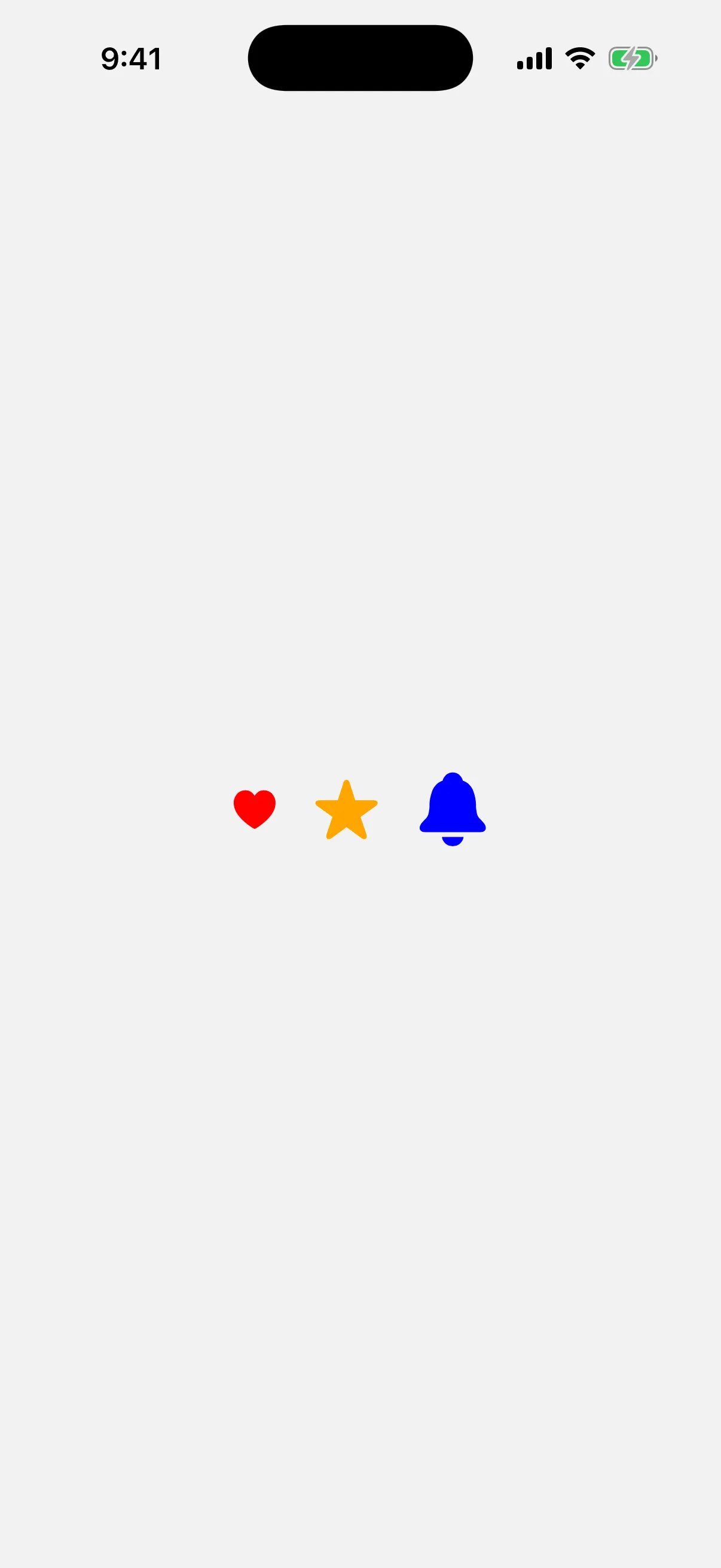

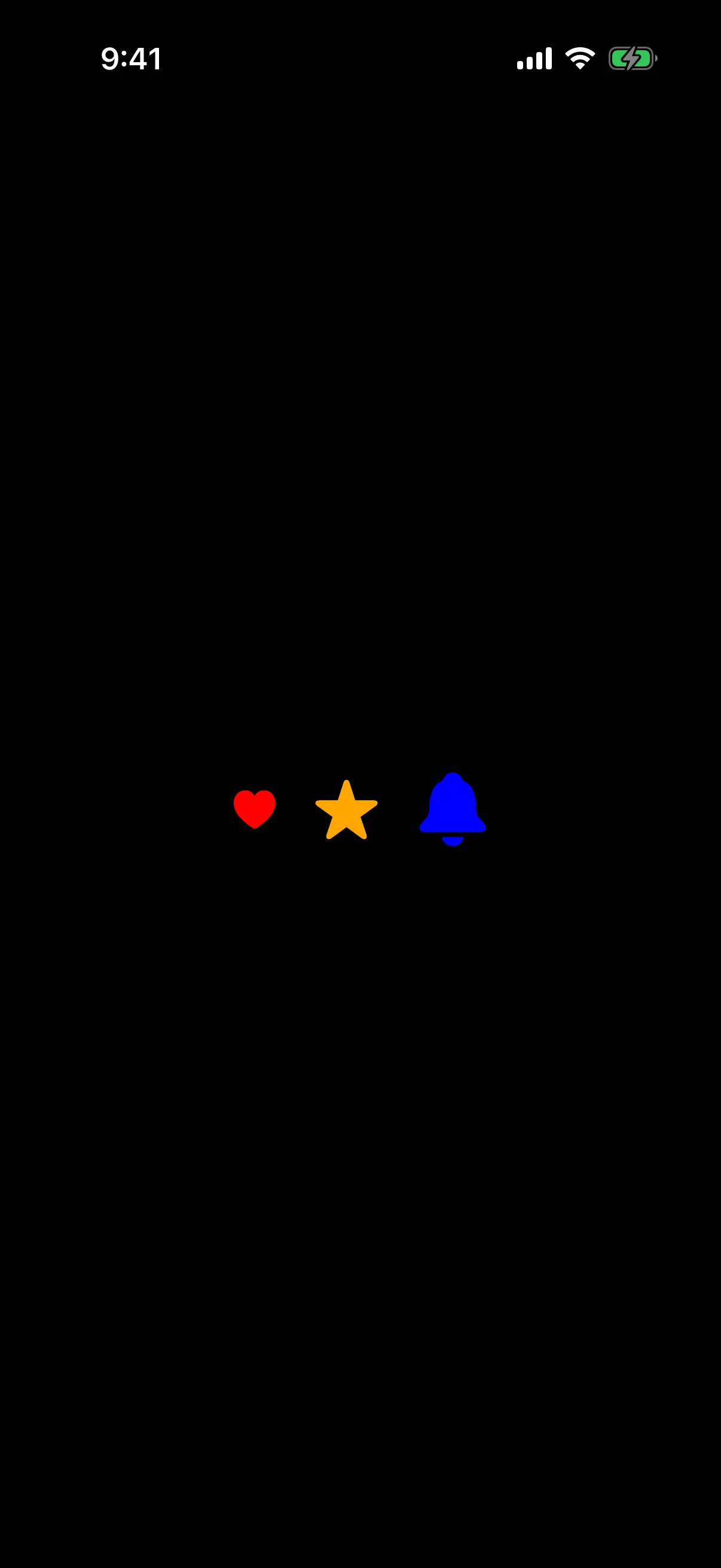

A red heart, an orange star, and a blue bell SF Symbol at increasing sizes

With variable value

Some SF Symbols alter their appearance based on a variable value. Use the variableValue prop with a value between 0.0 and 1.0 to control the rendered symbol. Requires iOS 16.0+ and SF Symbols 4.0+.

import { Host, HStack, Image } from '@expo/ui/swift-ui';

export default function ImageVariableExample() {
  return (
    <Host style={{ flex: 1 }}>
      <HStack spacing={16}>
        <Image
          systemName="chart.bar.fill"
          size={32}
          variableValue={0.3}
        />
        <Image
          systemName="chart.bar.fill"
          size={32}
          variableValue={0.6}
        />
        <Image
          systemName="chart.bar.fill"
          size={32}
          variableValue={1.0}
        />
      </HStack>
    </Host>
  );
}

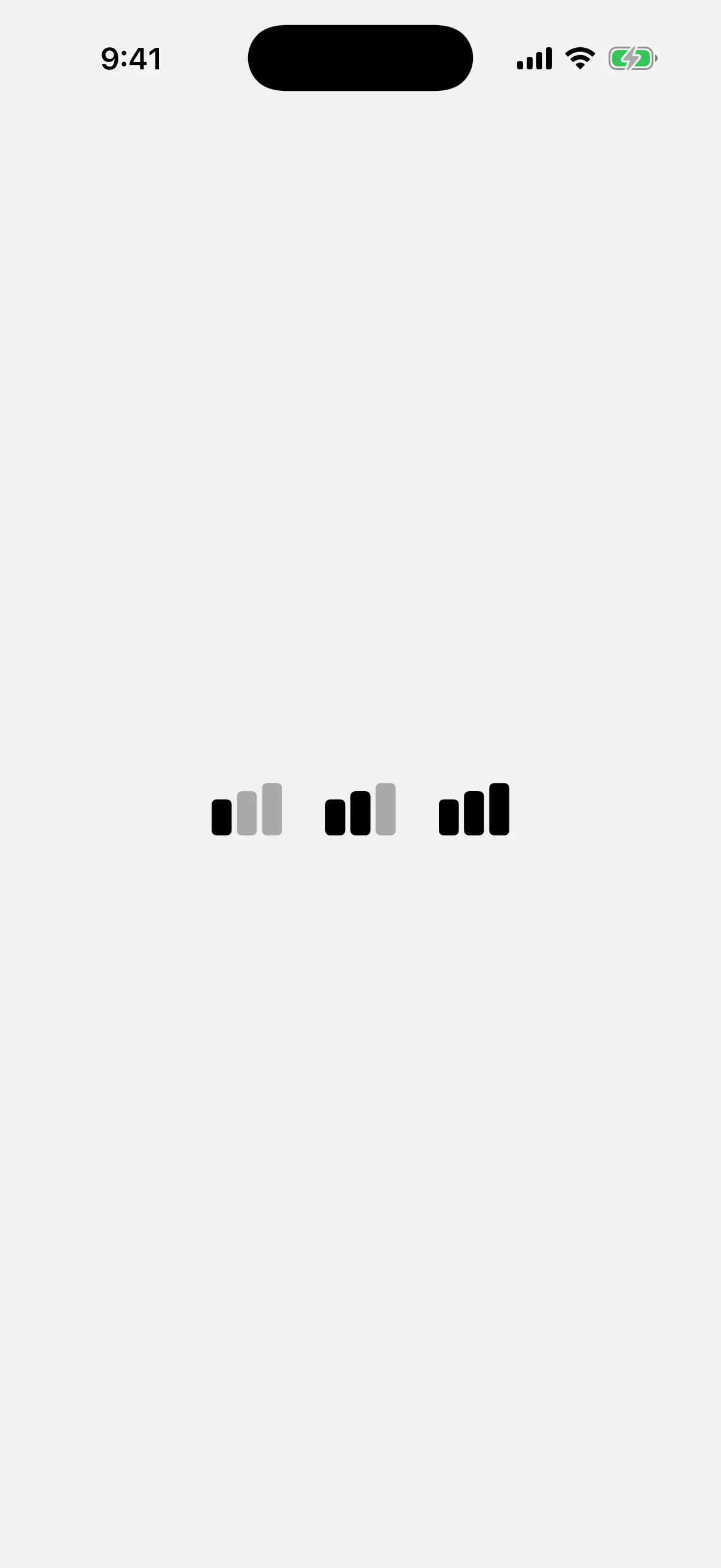

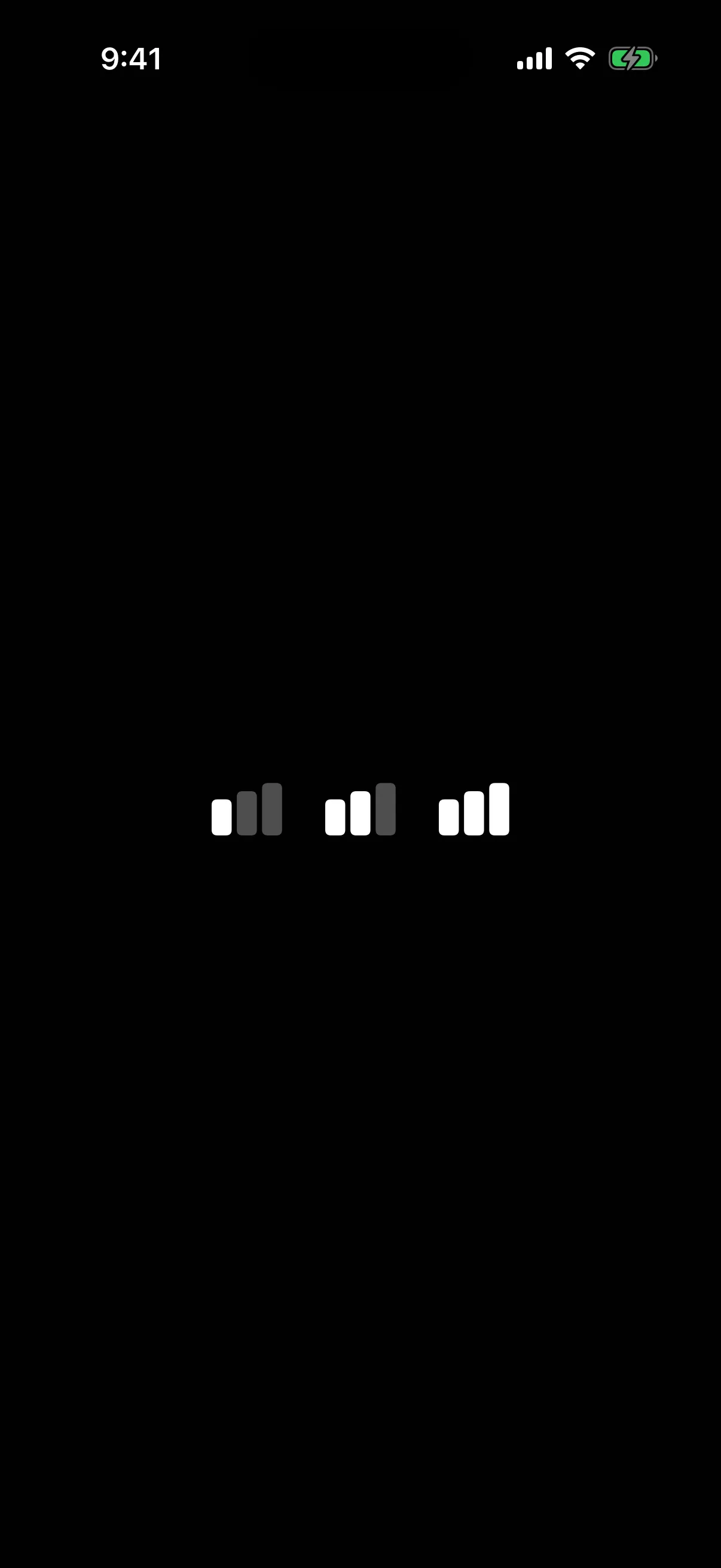

Three bar chart SF Symbols with variable values of 0.3, 0.6, and 1.0

With symbol effect

Apply an SF Symbol effect to animate the symbol by passing a 0 modifier from @expo/ui/swift-ui/modifiers.

This effect runs continuously by default.
You can also pass value for a discrete trigger that fires once per change, or isActive for a boolean toggle that runs the effect while true.
Requires iOS 17.0 and later.

import { Host, Image } from '@expo/ui/swift-ui';
import { symbolEffect } from '@expo/ui/swift-ui/modifiers';

export default function ImageSymbolEffectExample() {
  return (
    <Host style={{ flex: 1 }}>
      <Image
        systemName="wifi"
        size={48}
        color="blue"
        modifiers={[
          symbolEffect({
            effect: 'variableColor',
            fillStyle: 'iterative',
            playbackStyle: 'reversing',
          }),
        ]}
      />
    </Host>
  );
}

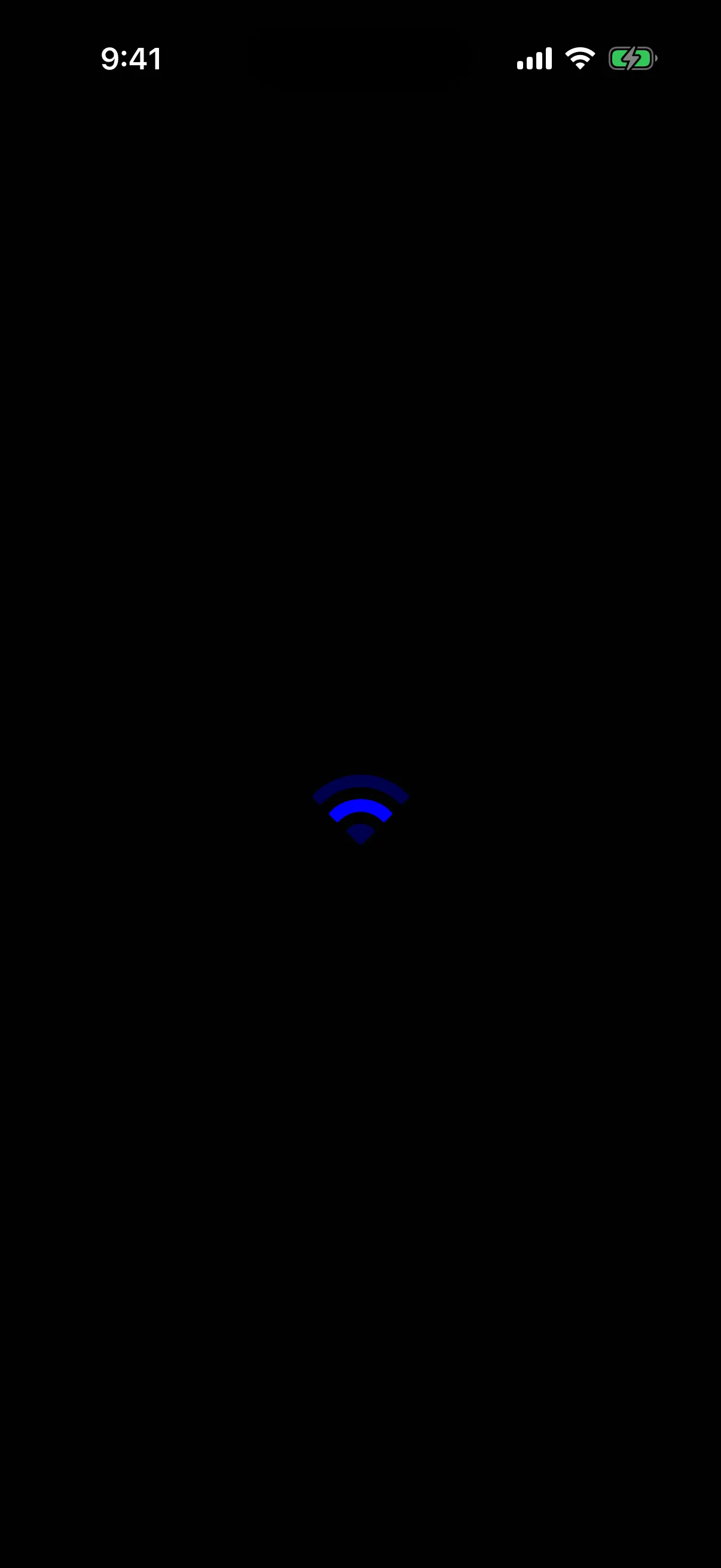

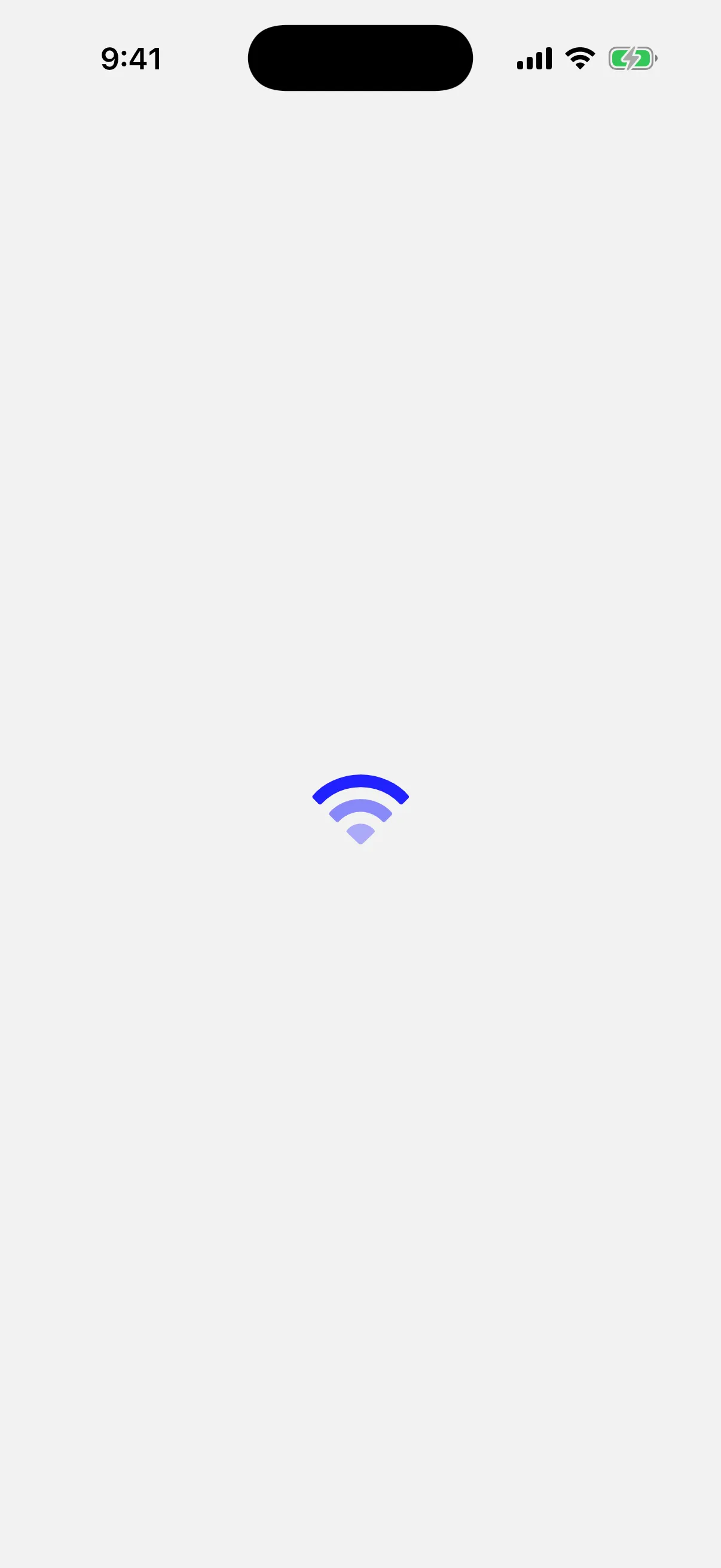

A blue wifi SF Symbol shown during one frame of the variable color effect animation

The following example uses value to play bounce on each button press. Write to state.value from a worklet (or via scheduleOnUI) to trigger the effect.

import {
  Button,
  Host,
  Image,
  useNativeState,
  VStack,
} from '@expo/ui/swift-ui';
import { symbolEffect } from '@expo/ui/swift-ui/modifiers';
import { scheduleOnUI } from 'react-native-worklets';

export default function ImageSymbolEffectValueExample() {
  const trigger = useNativeState(0);

  return (
    <Host style={{ flex: 1 }}>
      <VStack spacing={16}>
        <Image
          systemName="bell.fill"
          size={48}
          color="orange"
          modifiers={[
            symbolEffect(
              { effect: 'bounce', direction: 'up' },
              { value: trigger }
            ),
          ]}
        />
        <Button
          label="Bounce"
          onPress={() =>
            scheduleOnUI(() => {
              'worklet';
              trigger.value = trigger.value + 1;
            })
          }
        />
      </VStack>
    </Host>
  );
}

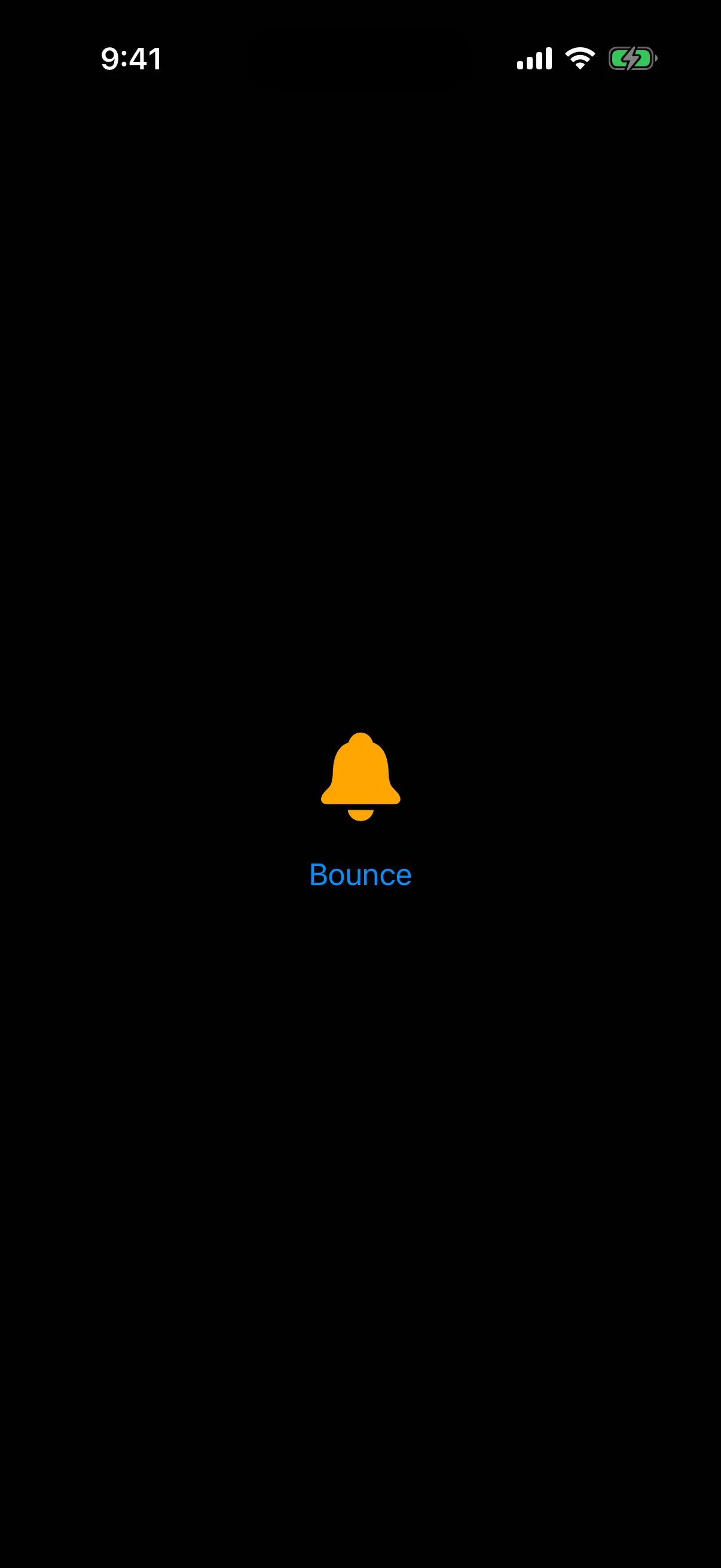

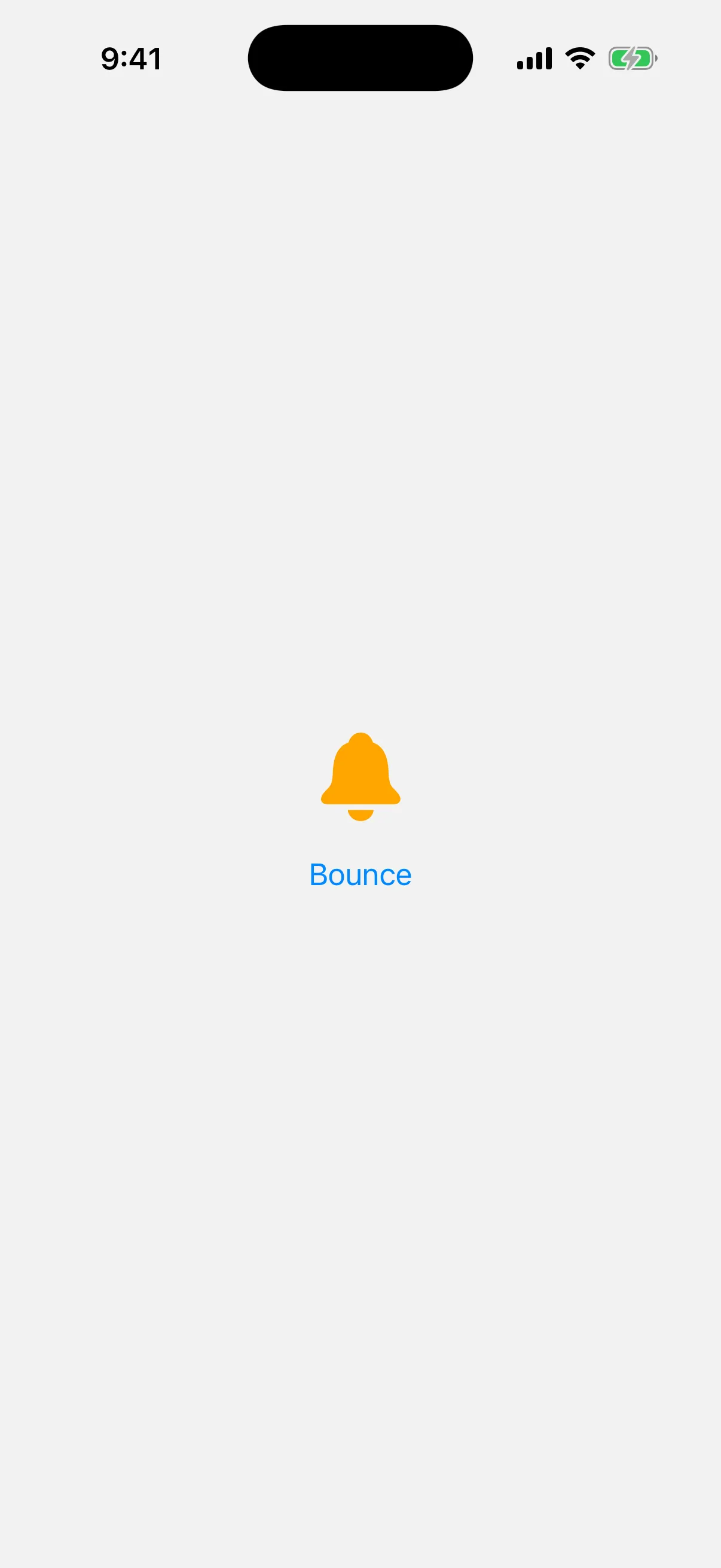

An orange bell SF Symbol above a Bounce button

The following example uses isActive to toggle a continuous breathe animation.

import {
  Host,
  Image,
  SyncToggle,
  useNativeState,
  VStack,
} from '@expo/ui/swift-ui';
import { symbolEffect } from '@expo/ui/swift-ui/modifiers';

export default function ImageSymbolEffectIsActiveExample() {
  const isActive = useNativeState(true);

  return (
    <Host style={{ flex: 1 }}>
      <VStack spacing={16}>
        <Image
          systemName="cloud.fill"
          size={48}
          color="cyan"
          modifiers={[
            symbolEffect({ effect: 'breathe' }, { isActive }),
          ]}
        />
        <SyncToggle label="Breathe" isOn={isActive} />
      </VStack>
    </Host>
  );
}

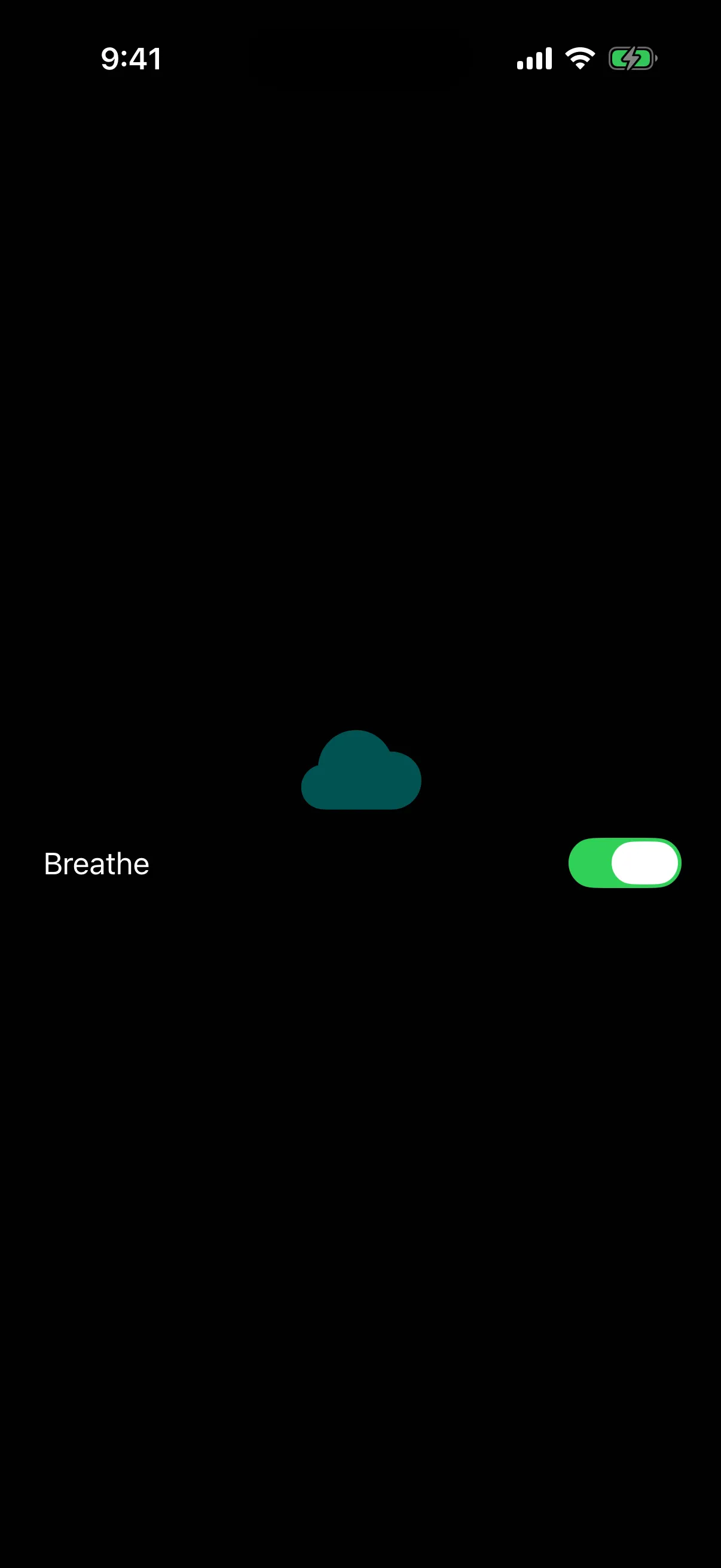

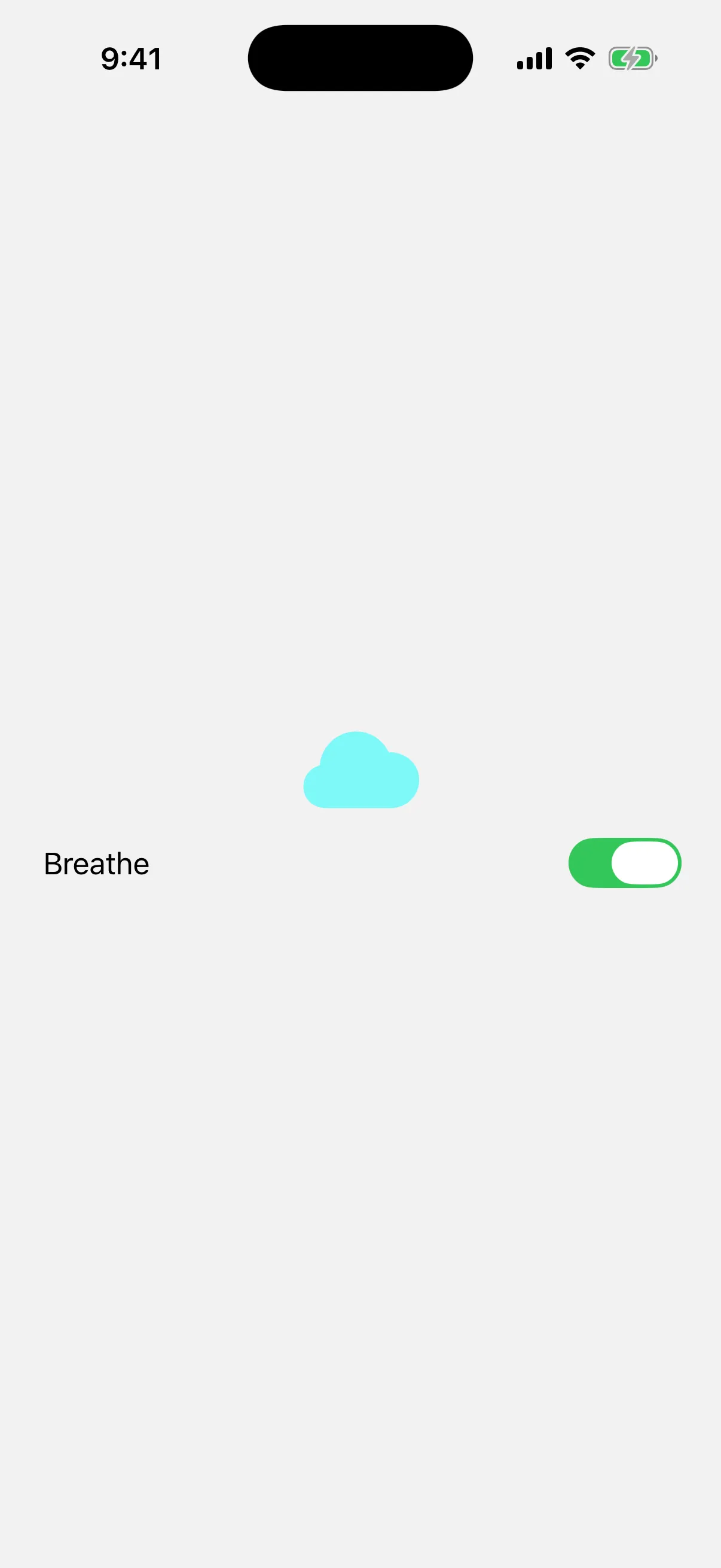

A cyan cloud SF Symbol above a Breathe toggle that is turned on

API

import { Image } from '@expo/ui/swift-ui';

57 change what you see on Image.
1 work, but not in the way that you may expect.
19 have no visible effect on Image.
13 work only in one place, such as a widget or a Grid.

Modifier	What to know
`font`	Sets the size and weight of an SF Symbol. It has no effect on a bitmap image. If you set no `font`, `Image` uses its `size` prop.

No visible effect on Image

Image accepts these modifiers, but you see no change. They do not give an error.

Modifier	Why nothing happens
`accessibilityElement`	It joins the child views into one accessibility element, and Image takes no child views.
`allowsTightening`	It changes only text, and Image shows no text.
`containerShape`	It sets the shape that the child views use for `containerRelativeShape`, and Image takes no child views.
`disabled`	It turns off the controls in the view, and Image has none.
`geometryGroup` iOS 17+	It works on the child views that you give the component, and Image takes none.
`italic`	It changes only text, and Image shows no text.
`kerning`	It changes only text, and Image shows no text.
`layoutPriority`	It has an effect only when the view shares an axis with other views in a stack.
`lineHeight` iOS 26+	It changes only text, and Image shows no text.
`lineLimit`	It changes only text, and Image shows no text.
`lineSpacing`	It changes only text, and Image shows no text.
`minimumScaleFactor`	It changes only text, and Image shows no text.
`monospacedDigit`	It changes only text, and Image shows no text.
`multilineTextAlignment`	It changes only text, and Image shows no text.
`strikethrough`	It changes only text, and Image shows no text.
`textCase`	It changes only text, and Image shows no text.
`truncationMode`	It changes only text, and Image shows no text.
`underline`	It changes only text, and Image shows no text.
`zIndex`	It changes the order of views that cover each other in the same parent, and Image does not stack its children.

Only in some places

These modifiers work only in a widget, in a Grid, in a Namespace or in a parent that asks for them.

Modifier	Where it works
`activityBackgroundTint`	Works only in a Live Activity. It has no effect in the app.
`alignmentGuide`	Has an effect only when the parent, such as a `VStack` or `ZStack`, aligns its children by the same guide.
`containerBackground`	Works only in a widget, or in a navigation container when you use a `navigation` placement.
`glassEffectId`	Works only on a view that also has `glassEffect`, in a `GlassEffectContainer` and a `Namespace`.
`gridCellAnchor` iOS 16+	Works only on a cell of a `Grid`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridCellColumns`	Works only on a view in a `Grid.Row`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridCellUnsizedAxes`	Works only on a view in a `Grid`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`gridColumnAlignment` iOS 16+	Works only on a view in a `Grid.Row`. `Grid` is in `@expo/ui/swift-ui`, but it has no Expo docs page.
`invalidatableContent` iOS 17+	Has an effect only when a parent view uses `redacted` with the `invalidated` reason.
`matchedGeometryEffect`	Works only in a `Namespace`. Give two views the same `id` and change between them with an animation.
`privacySensitive`	Has an effect only when a parent view uses `redacted` with the `privacy` reason.
`unredacted`	Has an effect only in a parent view that uses `redacted`.
`widgetURL`	Works only in a widget. It has no effect in the app.

Sources

The original Expo docs for this page:

Image (SwiftUI) (source-of-truth/versions/v57.0.0/sdk/ui/swift-ui/image.md)
Image (Universal) (source-of-truth/versions/v57.0.0/sdk/ui/universal/icon.md)
